Product Details:
|
| LCD Size: | 17" HMI | Brightness (cd/m²): | 400 Optional |
|---|---|---|---|
| Touch Type: | Capacitive Touch | Power Input: | 9-36V |
| CPU: | J1900/I3/I5/I7 | Memory: | DDR3L 1333MHz 4GB, Up To 8GB |
| Harddisk: | 1 X MSATA 128G SSD（250G / 500G / 1TB SSD) / 1 X 2.5" SATA | Operation System: | Support Windows 7 / 10 / 11， Linux, Ubuntu |
| High Light: | PCAP Industrial Touch Panel PC,HMI Industrial Touch Panel PC,High Brightness All In One Panel PC |
||
High Brightness HMI PCAP Industrial Touch Panel PC All In One Panel
Customize High brightness HMI 17 inch PCAP industrial All in one Panel PC
New product for 17 inch HMI
17-inch multi-point capacitive touch PC PPC-J017SAC

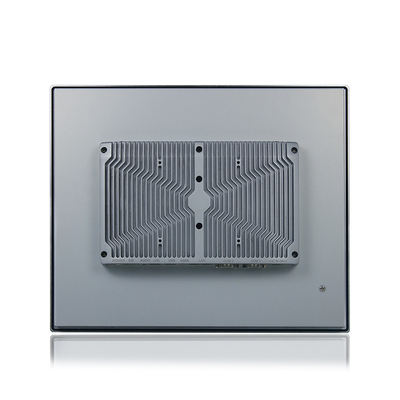

● All-aluminum die-casting, integrated body, heat dissipation, dustproof, waterproof, stable and reliable
● CPU J6412/J1900/I3 I5 I7 optional
● USB*4 /LAN*2 /COM*2 /HDMI*1/DC9-30V
● 17-inch industrial touch all-in-one computer/1280×800 LED
● The touch screen adopts industrial-grade multi-point capacitive touch screen/resistor optional
| PPC-J017SAC | |
| System | |
| CPU | Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 2MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 128G SSD(250G / 500G / 1TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel HD Graphics |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 7 / 10 / 11, Linux, Ubuntu |

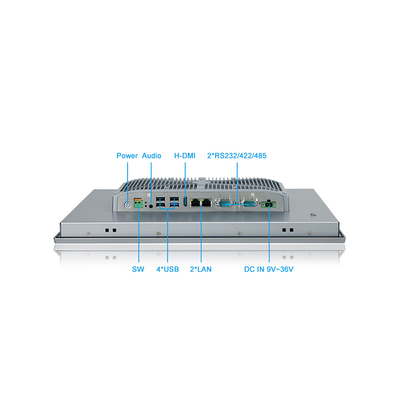

| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 2 x LAN (10/100/1000 Mbps) |
| USB | 3 x USB2.0 / 1 x USB3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G ) |
| Display | |
| LCD Size | 17" ( 5:4 ) |
| Resolution | 1280 x 1024 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 395 x 327 x 60 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.3 KG |
| Environment | |

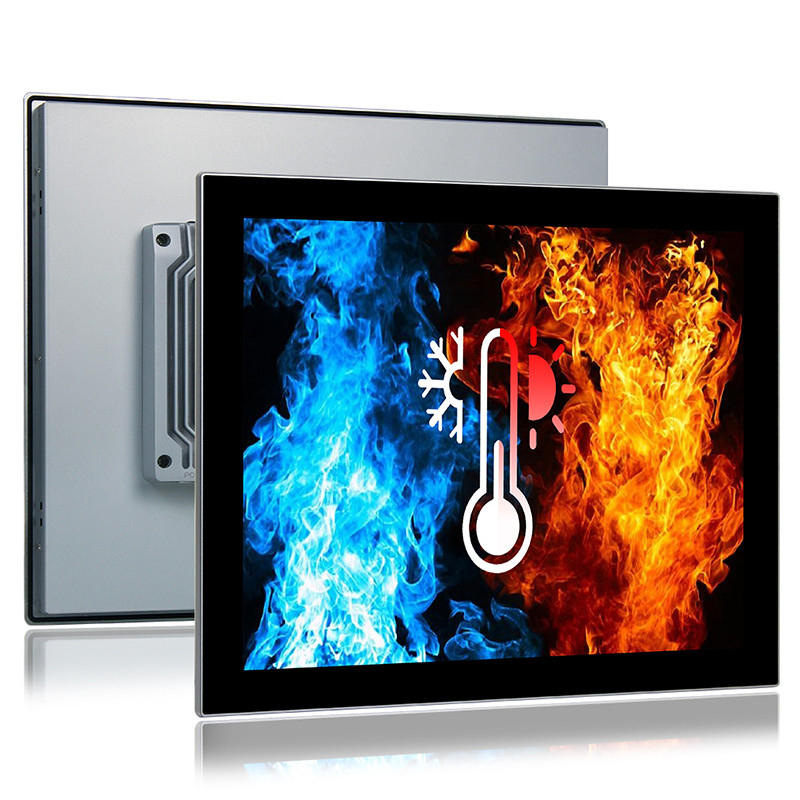

| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
