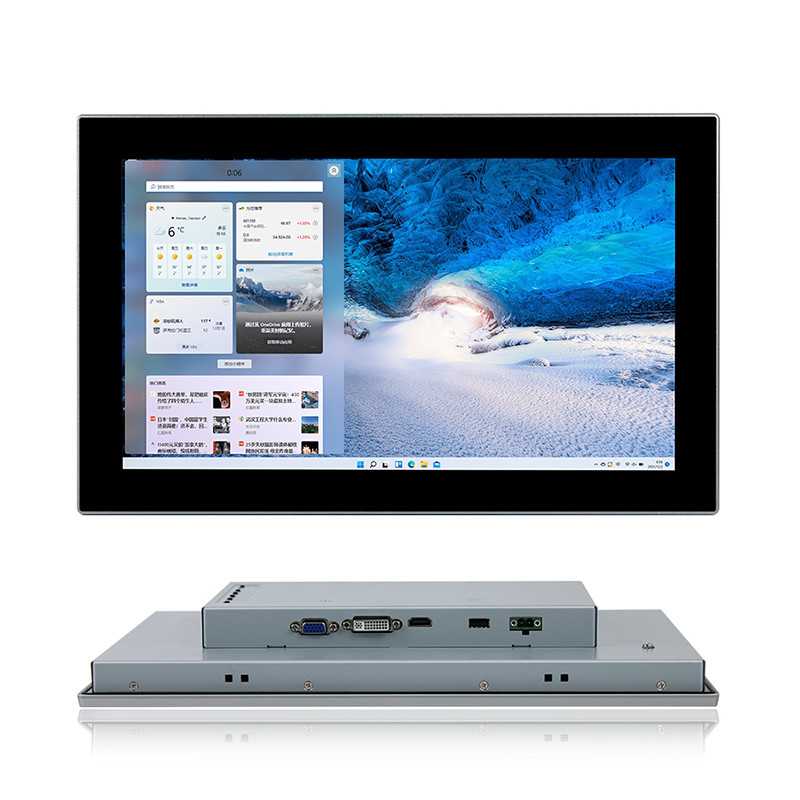

18.5'' All In One Industrial Panel Monitor Embedded Capacitive Touch
18.5' All In One Industrial Panel Monitor Embedded Capacitive Touch Embedded Capacitive touch 18.5' All In One Industrial Panel monitor Feature for 18.5' All In One Industrial Panel monitor 1. Seamlessly designed flat frame, front panel IP65 dustproof. 2. Aluminum alloy shell, good mechanical performance and good heat dissipation. 3. Industrial grade LCD panel, wide viewing angle, true color. 4. Adopt multi-point PCAP touch screen with high sensitivity and fast response. 5.
18.5inch Industrial Panel Monitor
,Embedded Industrial Panel Monitor
,Capacitive Embedded Touch Screen
18.5'' All In One Industrial Panel Monitor Embedded Capacitive Touch
Embedded Capacitive touch 18.5'' All In One Industrial Panel monitor
Feature for 18.5'' All In One Industrial Panel monitor
1. Seamlessly designed flat frame, front panel IP65 dustproof.
2. Aluminum alloy shell, good mechanical performance and good heat dissipation.
3. Industrial grade LCD panel, wide viewing angle, true color.
4. Adopt multi-point PCAP touch screen with high sensitivity and fast response.
5. High-performance motherboard, 7x24 uninterrupted operation.
| PM-H185WAC | |
| Display | |
| Panel Size | 18.5" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Display Brightness | 350 cd/m2 |
| Contrast Ratio | 1200:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |

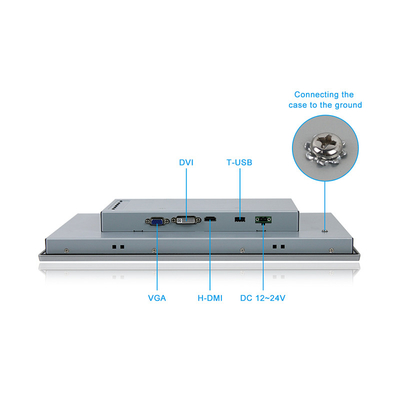

| I / O | |
| VGA | 1 x VGA |
| H-DMI | 1 x H-DMI |
| DVI | 1 x DVI |
| USB | 1 x Touch USB |

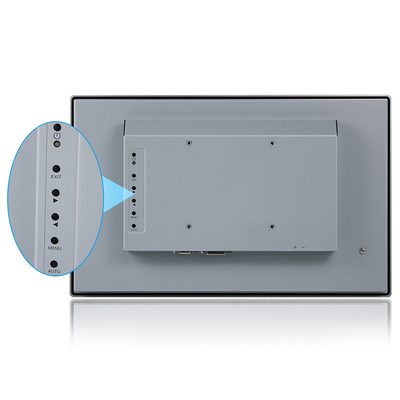

| Other I/O Interface | 1 x OSD Control Key |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/4A , 48W |
| Power Input | 2-pin Terminal Block Connector with Power Input 12~24VDC |
| Power Consumption | ≦25W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 466 x 287 x 55 mm |
| Cut-out Size | 452 x 273 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.1 kg |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Application of 18.5'' All In One Industrial Panel monitor:
Restaurant food/snack shop
Tea bread bakery
Shoes and Clothing shop
Convenience store shop
Supermarket
FAQ
1. Question: Can you put my brand name (logo) on these products?
A: Yes, we can support OEM/ODM service, the customization process is as follows:
1: Provide your specific requirements.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start producing it.
2. Question: How can I trust your company?
Answer: We have more than ten years of export experience and R & D and manufacturing experience.
3. Question: After I get the product, if the product is broken, what kind of after-sales service do you support?
A: First, please contact us and tell us the problem, we can give you a good solution, second, you can return the product and we will repair it. We want to do long-term business with you, not once.
