Product Details:
|
| CPU: | Intel Celeron Quad Core J1900 2.0GHz | Memory: | 4GB |
|---|---|---|---|
| Harddisk: | 32G SSD | I/O: | 1*LAN, 2*RS232, 3*USB ( Optional ) |
| Os: | Windows8 / 10, Linux, Unix, QNX | Material: | Aluminum Alloy Shell |
| Working Voltage: | DC 12V~24V / Optional(+9V~36V) | Waterproof Rate: | IP66 / IP67 / IP69K |
| Warranty: | 1 Year | Product Name: | Embedded Box PC, Industrial Mini PC,Rugged Embedded Fanless Computer |
| High Light: | Ip69k embedded pc windows 10,I5 embedded pc windows 10,windows 10 industrial mini computer |
||

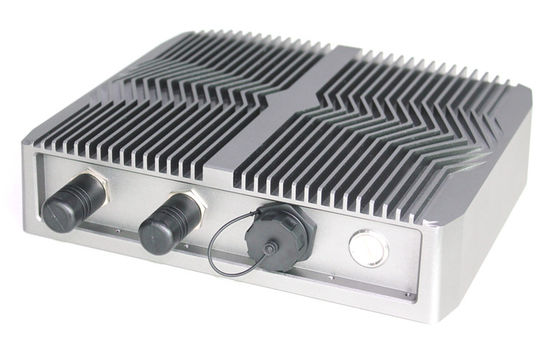

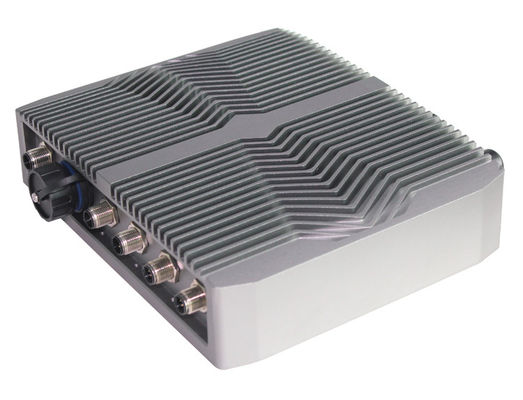

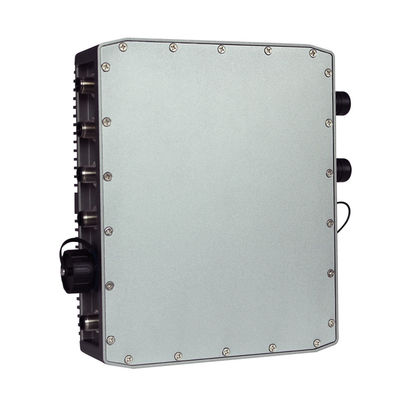

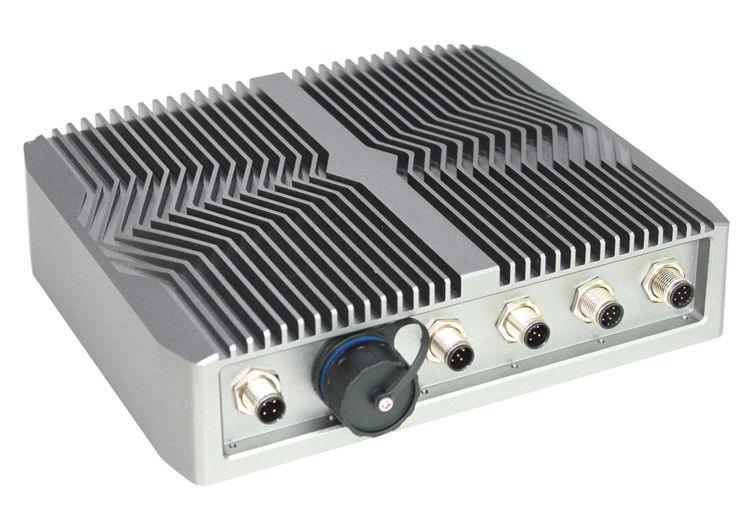

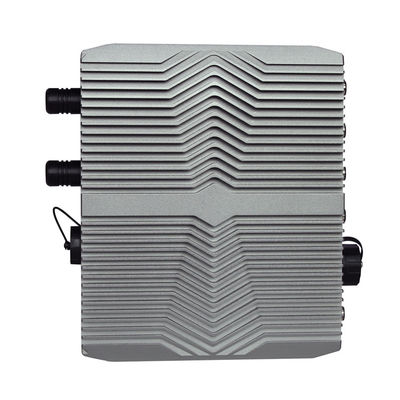

Rugged Embedded Fanless Computer Waterproof Ip67 Ip68 Ip69k I5 I3 J1900
Feature
1. Aluminium alloy shell, whole pc IP66/ IP67/IP69K waterproof
2. Intel Bay trail j1900 2.0GHz, embedded industrial pc
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
Specification
| EFIC-6000JA | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 1 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP67 / IP69K | |
| Product Dimension | 220 x 180 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦15W | |
Applications:
Clean Room
Food Processing Factory
petroleum testing apparatus
marine navigation
railway project outdoor
Outdoor Kiosk
Beverage Factory Automation
Warehouse Automation
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
