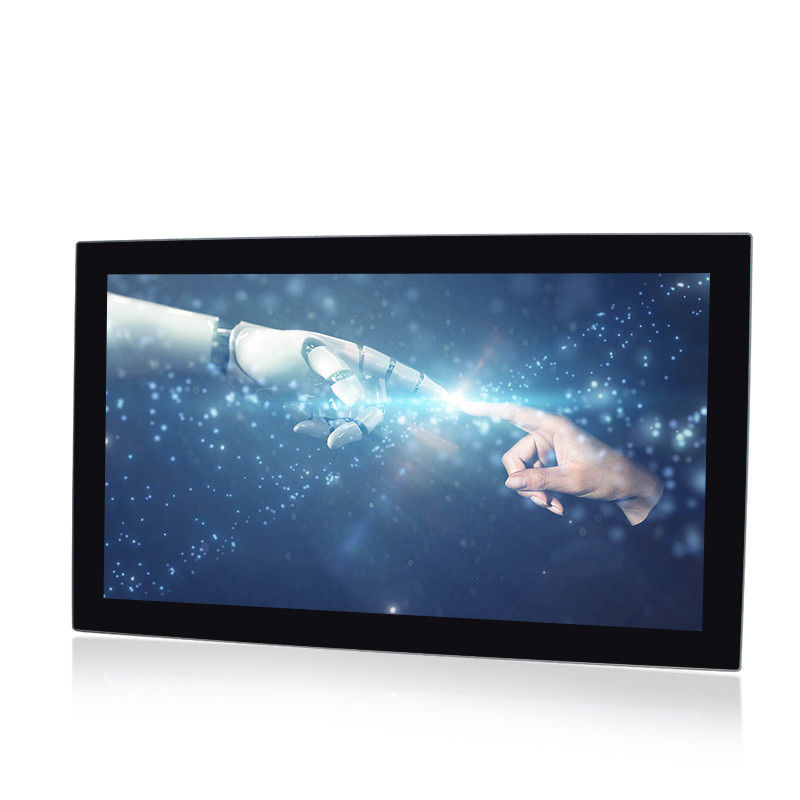

USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case

USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case
USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case

Large Image :  USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: IP65 CE ROHS FCC
Model Number: PM-H215WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/carton, weight: 12kg/pc,Packing Size: 630 x 190 x 480 mm
Delivery Time: 3 working days upon receive the payment
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case

Description
Size: 21.5" Resolution: 1920 X 1080
Touch Screen: Multi-Touch PCAP I/O: 1 X VGA, 1 X H-DMI, 1 X DVI, 1 X Touch USB, 1 X OSD Control Key
Cut-out Size: 520 X 312 Mm VESA: 100 X 100 Mm
Working Voltage: DC 12V / Optional(+9V~36V) Material: High-strength Al-alloy, Support IP65
Color: Gray Warranty: 1 Year
Product Name: Industrial Display,Capacitive Touch Monitor
Highlight:

VGA 10 point capacitive touch screen

,

Embedded 10 point capacitive touch screen

21.5" Embedded Aluminum Alloy Case Capacitive Touch Monitor USB VGA



Feature
1. Aluminium alloy front panel, front IP65 waterproof
2. 21.5" TFT LED, resolution 1920*1080, 10 points capacitive touch, pcap touch monitor
3. HD-MI/VGA/DVI multiple signals input supported
4. Embedded / VESA mounting
5. DC12V Input, (+9V~36V) wide voltage input optional



Specification

PM-H215WAC
LCD Panel Panel Size 21.5" FHD LED
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 250 cd/m2
Contrast Ratio 3000:1
Colors 16.7M , 74% NTSC
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥6H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W

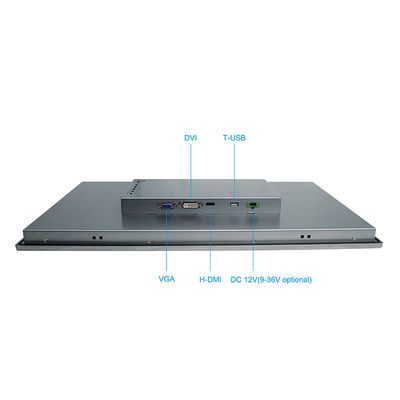

I / O VGA 1 x VGA
H-DMI 1 x H-DMI
DVI 1 x DVI
USB 1 x Touch USB
Other I/O Interface 1 x OSD Control Key
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 538 x 330 x 55 mm
Cut-out Size 520 x 312 mm
Packing Size 630 x 190 x 480 mm
Gross Weight 12 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V / optional(+9V~36V)



USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case 0USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case 1



USB VGA 21.5" Embedded 10 Point Capacitive Touch Screen Aluminum Alloy Case 2

FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
