Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U

Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U
Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U

Large Image :  Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: FCC CE ROHS
Model Number: EFIC-1000QB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/carton, weight: 4kg/pc,Packing Size:360 x 180 x 320 mm
Delivery Time: 12 working days upon receive the payment
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U

Description
CPU: Intel Core I7-8565U Quad Core 1.8GHz Memory: DDR4L 2400MHz 4GB, Up To 32GB
Harddisk: 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional Waterproof Rate: IP66 / IP67 / IP69K
Product Name: Embedded Box PC, Industrial Mini PC,Rugged Embedded Fanless Computer Graphics: Intel HD Graphics 620
Chipsets: Intel 8th Skylake-U SOC L2 Cache: 8MB
Wireless Network: WiFi + Bluetooth ( Optional ) I/O: 2 X LAN,4 X USB2.0,4 X USB3.0,4 X RS232
High Light:

Dual HDMI Industrial Embedded Box PC

,

VGA Industrial Embedded Box PC

,

i7 intel box pc

20W Dual HDMI VGA Fanless Desktop Mini Pc Intel Core i7-8565U



Feature
1. The aluminum alloy structure, hard anodic oxidation treatment of sandblasting, resistance to scratch
2. Intel 8 Generation Core i3 8145U CPU:2.1GHz fanless configuration
3. Two gigabit network ports, support network wake up and PXE boot
4. 4 COM (RS232 / R485 optional) a wi-fi/bluetooth / 4G is optional
5. Support encryption on-board TPM2.0 module
6. Support the wide voltage DC 9 v ~ 36 v power input



Applications:
Factory automation
Self service equipment
Paying kiosk
cnc plasma machine
car testing mechine
Multi-Product Dispensing Machine



Specification

EFIC-1000QB
System CPU Intel Core i7-8565U Quad core 1.8GHz
L2 Cache 8MB
Chipsets Intel 8th Skylake-U SOC
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® i211A 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows 8 / 10, Linux, Unix, QNX

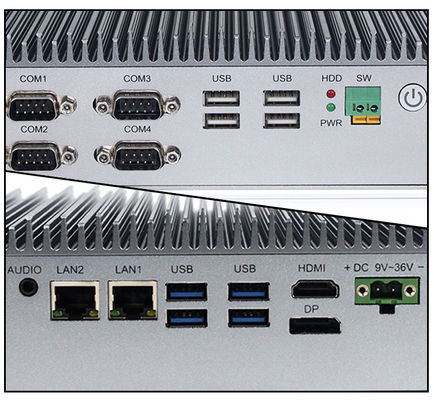

I / O VGA 1 x DP / 1 x HD-MI
LAN 2 x LAN
USB 4 x USB2.0 / 4 x USB3.0
COM 4 x RS232
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Institutional Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
VESA Mounting 208 x 100 mm / 208 x 60 mm
Product Dimension 220 x 145 x 62 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 9V~36V
Power Consumption ≦25W



Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U 0Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U 1Dual HDMI VGA 20W Industrial Embedded Box PC Intel Core I78565U 2
