Product Details:
|
CPU: | Intel Core I7-8565U Quad Core 1.8GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
---|---|---|---|
Harddisk: | 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | Waterproof Rate: | IP66 / IP67 / IP69K |
Product Name: | Embedded Box PC, Industrial Mini PC,Rugged Embedded Fanless Computer | Graphics: | Intel HD Graphics 620 |
Chipsets: | Intel 8th Skylake-U SOC | L2 Cache: | 8MB |
Wireless Network: | WiFi + Bluetooth ( Optional ) | Material: | Aluminum Alloy Shell |
Color: | Grey / Silver / Black ( Optional ) | VESA Mounting: | 208 X 100 Mm / 208 X 60 Mm |
High Light: | 256G SSD Industrial Embedded Box PC,8G RAM Industrial Embedded Box PC |

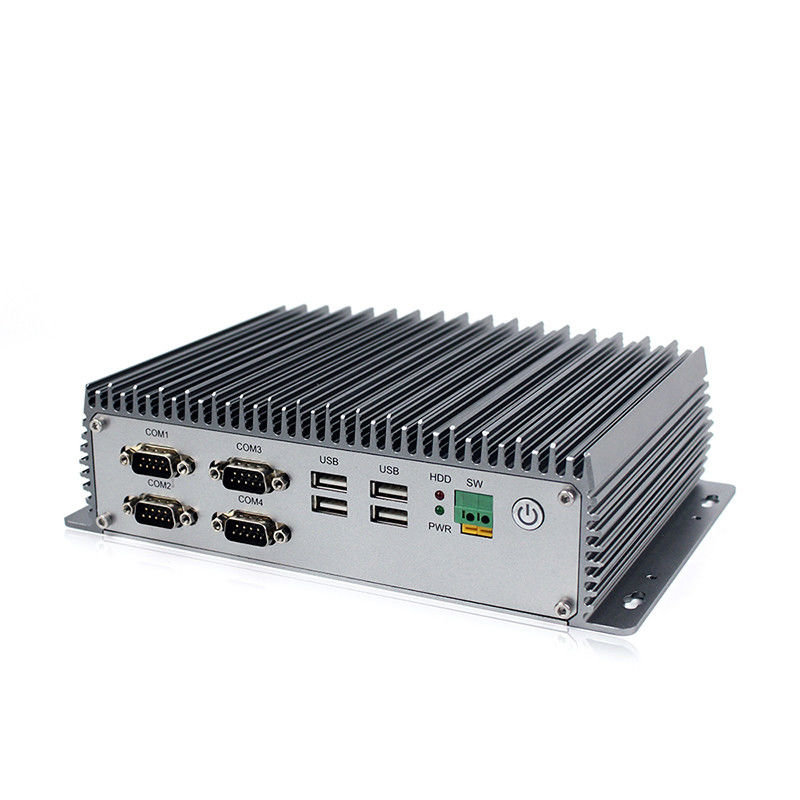

Mini Fanless Embedded Pc I7-8565U 8G RAM 256G SSD Industrial Automation
Feature
1. The aluminum alloy structure, hard anodic oxidation treatment of sandblasting, resistance to scratch
2. Intel 8 Generation Intel Core i7-8565U Quad core 1.8GHz
3. Two gigabit network ports, support network wake up and PXE boot
4.4 COM (RS232 / R485 optional) a wi-fi/bluetooth / 4G is optional
5. Support encryption on-board TPM2.0 module
6. Support the wide voltage DC 9 v ~ 36 v power input
Application
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
Specification
EFIC-1000QB | ||
System | CPU | Intel Core i7-8565U Quad core 1.8GHz |
L2 Cache | 8MB | |
Chipsets | Intel 8th Skylake-U SOC | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® i211A 1000 Mbps port | |
Audio | Realtek ACL662 Audio controller | |
Operation System | Windows 8 / 10, Linux, Unix, QNX | |
I / O | VGA | 1 x DP / 1 x HD-MI |
LAN | 2 x LAN | |
USB | 4 x USB2.0 / 4 x USB3.0 | |
COM | 4 x RS232 | |
Wireless Network | WiFi + Bluetooth ( Optional ) | |
Other I/O Interface | 1 x Power Switch | |
Institutional | Material | Aluminum Alloy Shell |
Color | Grey / Silver / Black ( optional ) | |
VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
Product Dimension | 220 x 145 x 62 mm | |
Packing Size | 360 x 180 x 320 mm | |
Gross Weight | 4.0 KG | |
Power and Environment | Operating Temperature | -10~60°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC 9V~36V | |
Power Consumption | ≦25W |
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
