I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer

I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer
I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer

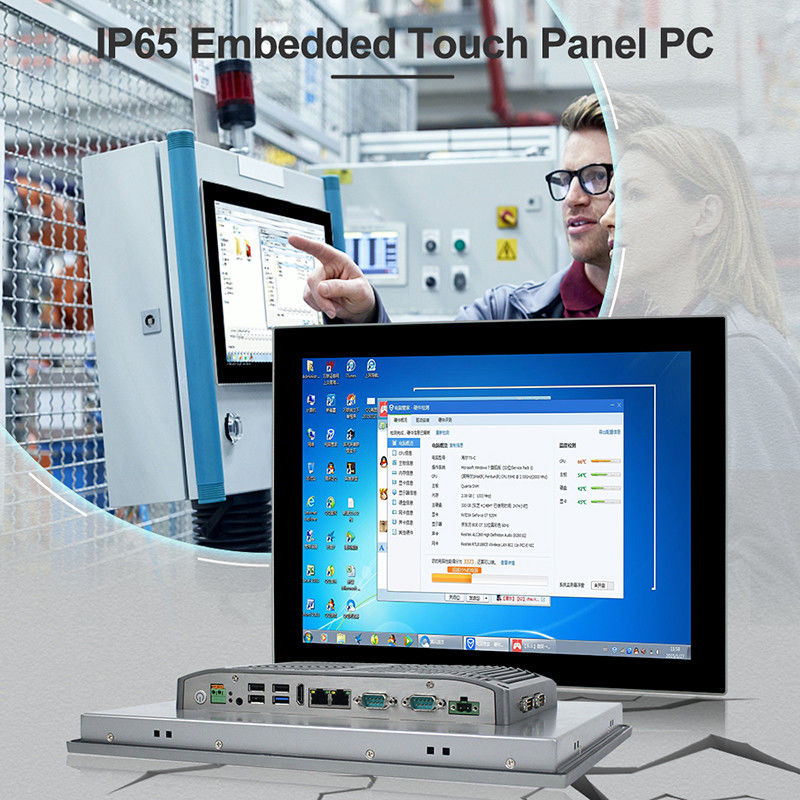

Large Image :  I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: PPC-7015SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Foam + Carton
Delivery Time: 3-7 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 Set/Sets per Month

I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer

Description
Panel Size: 15" LED Resolution: 1024*768
CPU: Intel Core I7-8565U Dual Core 1.8GHz Memory: DDR4L 2400MHz 4GB, Up To 32GB
Harddisk: 1 X MSATA 64G SSD / (128G / 250G / 500G SSD) Optional I/O: 1xH-DMI,2xLAN,3xUSB2.0/1xUSB3.0,4xRS232/2x(RS232/422/485)
TPM: TPM2.0 Touchscreen: Multi-Touch PCAP
Operation System: Windows 10 / Linux, Ubuntu, Debian Working Voltage: DC IN 9V~36V
High Light:

8565U rugged touch screen pc

,

6 COM rugged touch screen pc

,

I7 touch screen pc computer

15" I7-8565U Industrial Hmi Touch Panel 6 COM 4G WiFi Bluetooth Ubuntu

Feature:
1. 15" TFT LED, resolution 1024 x 768, Multi-Touch PCAP


2. Intel Core i7-8565U Dual Core 1.8GHz

3. I/O: 1xH-DMI,2xLAN,3xUSB2.0/1xUSB3.0,4xRS232/2x(RS232/422/485),4G/WiFi/Bluetooth ( Optional )

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC IN 9V~36V

6. Wide range: -20°C to 70°C working temperature range.

7. VESA Mounting: 100 x 100 mm

8. 1000nits sunlight readable optional

9. TPM2.0

10. 8KV Static Electricity & 600W TVS Surge Protection


Application
Self service kiosk
Packaging inspection equipment
Ticket machine
Self-recovery machine
Traffic Control System
voting machine
vending machine
Self-service medical ticketing machine
factory automation
machine vision
military and defense
motion control
digital surveillance


Specification
PPC-7015SAC
SystemCPUIntel Core i7-8565U Dual Core 1.8GHz
L3 Cache8MB
MemoryDDR4L 2400MHz 4GB, Up to 32GB
Harddisk1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
GraphicsIntel HD Graphics 620
NetworkIntel® I211-AT GbE LAN
AudioRealtek ACL662 Audio controller
TPMTPM 2.0
Operation SystemWindows 10 / Linux, Ubuntu, Debian
I / OHDMI1 x H-DMI
LAN2 x LAN
USB4 x USB 3.0
COM4 x RS-232 / 2 x(RS-232 / 422 / 485)
Audio1x Audio_out & Mic_in
Wireless NetworkWiFi / Bluetooth ( 4G / Optional )
Other I/O Interface1 x Power Switch
LCD PanelPanel Size15" LED
Resolution1024 x 768
Aspect Ratio4:3
Display Brightness350 cd/m2
Contrast Ratio1000:1
Backlight Lifetime50000 Hr (min.)
Viewing Angle89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screenTouch Screen TypeMulti-Touch PCAP
Transmittance>90%
Response Time<5ms
Surface Hardness≥7H
Supply Voltage5.0V DC
Touch Life≧ 3000W
InstitutionalMaterialHigh-strength Al-alloy, support IP65
ColorGray
VESA MountingVESA: 100 x 100 mm
Waterproof RateIP65
Product Dimension361 x 285 x 60 mm
Cut-out Size347 x 271 mm
Packing Size460 x 180 x 400 mm
Gross Weight7 KG
Power and EnvironmentOperating Temperature-20~70°C
Storage Temperature-30~80°C(-22~176°F)
Relative Humidity5%~95%@40°C, non-condensing
Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power SupplyAC 100 - 240V~50/60Hz,1.5A
Working VoltageDC IN 9V~36V
Power Consumption≦45W

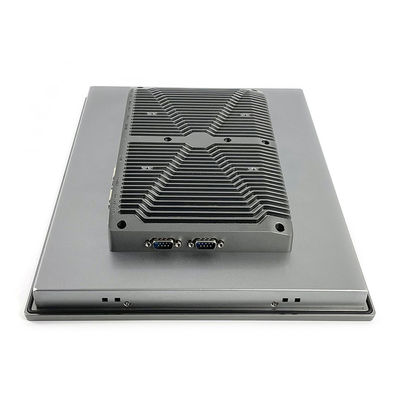

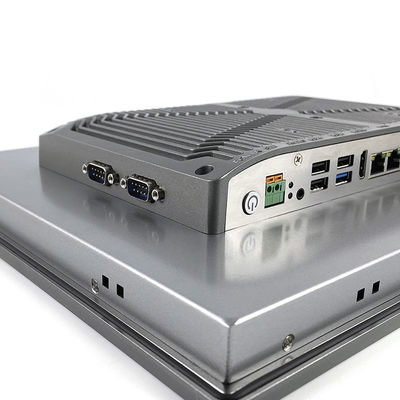

I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer 0I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer 1I7-8565U Rugged Touch Screen Pc , 6 COM Ubuntu Touch Screen Pc Computer 2
