Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 24" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | HMI multi touch panel pc,24 Inch multi touch panel pc,Linux industrial touch screen monitor |
||
Feature

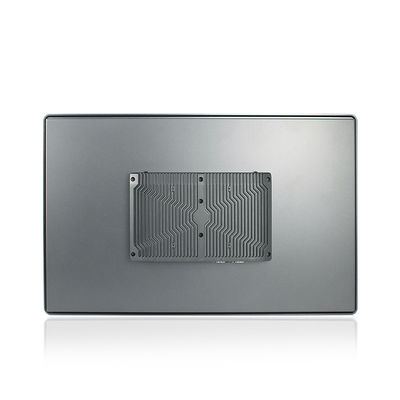

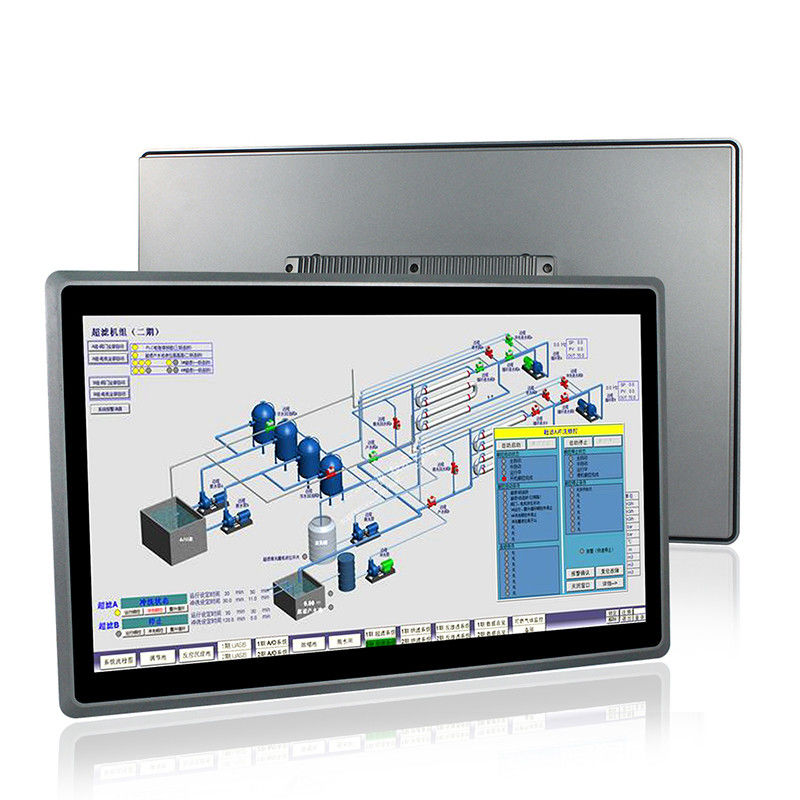

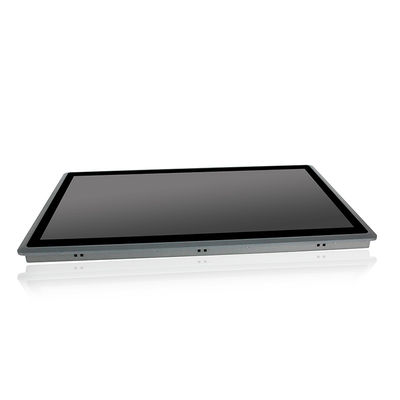

The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
1. 24" TFT LED, resolution 1920*1080
2. Adopt 10 points capacitive touch screen
| PPC-3024WAC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 24" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 594 x 377 x 60 mm | |
| Cut-out Size | 577 x 359 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
