Product Details:
|
Size: | 12" | Resolution: | 800 X 600 |
---|---|---|---|
CPU: | Intel Core I5-8265U Dual Core 1.6GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
Storage: | 1 X MSATA 64G SSD / ( 128G / 240G / 480G SSD ) Optional | Touchscreen: | Multi-Touch PCAP |
TPM: | TPM2.0 | Touch Screen: | Multi-Touch PCAP |
Waterproof Rate: | IP65 | I/O: | 1 X H-DMI,2 X LAN,4 X USB 3.0,2 X RS-232 / 422 / 485 |
High Light: | Dual Core waterproof panel pc,TFT LED waterproof panel pc,i5 industrial grade pc |
Equipment Control 12″ TFT LED Industrial Touch Screen Pc 800 X 600 Intel Core I5-8265U Dual Core
Feature
Onboard Intel Celeron J1900/8th Gen.Core i3/i5/i7 CPU
Onboard DDR3 4GB Memory / Optional SODIMM SKU
LCD+HDMI Output, Support Dual view/Simultaneous display
Fanless Operation

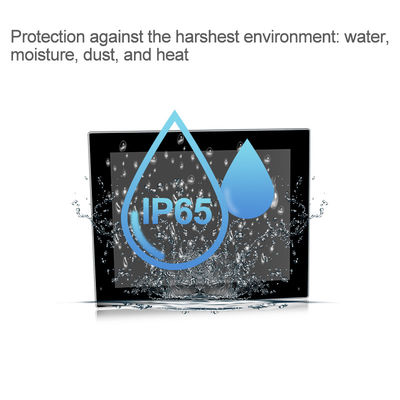

IP65 Front Bezel
Wide DC Support 9 ~ 36V
GPIO Port
All Aluminum Housing with Heatsink
Specification
PPC-5012SAC | ||
System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
L3 Cache | 6MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 12" LED |
Resolution | 800 x 600 | |
Aspect Ratio | 4:3 | |
Display Brightness | 400 cd/m2 | |
Contrast Ratio | 800:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 304 x 243 x 60 mm | |
Cut-out Size | 290 x 229 mm | |
Packing Size | 450 x 170 x 350 mm | |
Gross Weight | 5 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦35W |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
