I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core

I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core
I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core

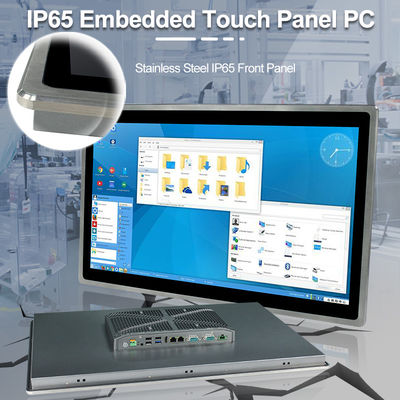

Large Image :  I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-7024WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core

Description
Waterproof Rating: Front IP65 IP66 IP67 Led Panel: 24" FHD LED
Resolution: 1920 X 1080 CPU: Intel Core I7-8565U Dual Core 1.8GHz
RAM: 4GB, Up To 32GB HDD: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Ports: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive Touch
Material: High-strength Al-alloy, Support IP65 VESA: 100 X 100 Mm
High Light:

8565U Industrial Touch Panel PC

,

I7 Industrial Touch Panel PC

,

PCAP industrial panel pc rugged

24" Industrial Touch Screen Panel 8th Generation Intel Core I7-8565U 10 Points PCAP Computer

Feature

This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.

The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.

The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.



1. 24" TFT LED, resolution 1920*1080



2. 10 points capacitive touch screen


3. Intel Core i7-8565U Dual Core 1.8GHz

4. 2xLAN, 2xRS232/422/485, 8KV Static Electricity & 600W TVS Surge Protection

5. Operating System: Windows 10 / Linux, Ubuntu, Debian

6. Wide voltage DC 9V~36V

7. Built-in TPM2.0 for Hardware-based Security


8. -20°C ~ 70°C extended operating temperature



9. IP65 Compliant Front Panel


PPC-7024WAC
System CPU Intel Core i7-8565U Dual Core 1.8GHz
L3 Cache 8MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 24" FHD LED
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 250 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 30000 Hr (min.)
Viewing Angle 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 594 x 377 x 60 mm
Cut-out Size 577 x 359 mm
Packing Size 730 x 200 x 530 mm
Gross Weight 16 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦60W


I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core 0I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core 1I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core 2I7 8565U 10 Points PCAP Industrial Touch Panel PC Rugged 8th Generation Intel Core 3



Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.



Applications
Self service kiosk
Packaging inspection equipment
Ticket machine
Self-recovery machine
Traffic Control System
voting machine
vending machine
Self-service medical ticketing machine

factory automation
machine vision
military and defense
motion control
digital surveillance
