Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 15" LED |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Intel Core I7-8565U Dual Core 1.8GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Resistive Touch / Capacitive |
| Working Voltage: | DC IN 9V~36V | Power Consumption: | ≦45W |
| High Light: | I7 all in 1 pc touch screen,8565U all in 1 pc touch screen,Resistive all in one touch screen monitor |
||
Feature
This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
1. 15" TFT LED, resolution 1024 x 768
2. 4. 5 wire resistive touch screen, high precision, durable, anti-interference.
8. -20°C ~ 70°C extended operating temperature
9. IP65 Compliant Front Panel
| PPC-7015SAR | ||
| System | CPU | Intel Core i7-8565U Dual Core 1.8GHz |
| L3 Cache | 8MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" LED |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% | |
| Response Time | <10ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3500W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Black | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 361 x 285 x 60 mm | |
| Cut-out Size | 347 x 271 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Packing List:
1x PPC-7015SAR
1x Utility DVD Driver

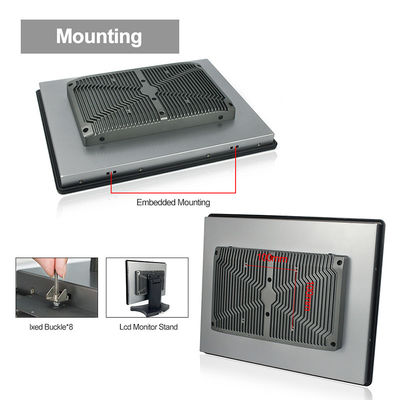

8x Embedded Buckles
1x Power Adaptor
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
