Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 12" LED |
|---|---|---|---|
| Resolution: | 800 X 600 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Resistive Touch / Capacitive |
| TPM: | TPM2.0 | Power Consumption: | ≦35W |
| High Light: | IP65 industrial grade touch screen computer,linux industrial grade touch screen computer,Fanless industrial linux computer |
||
Feature

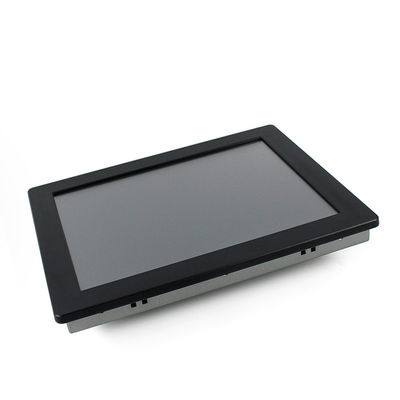

This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
Fanless:

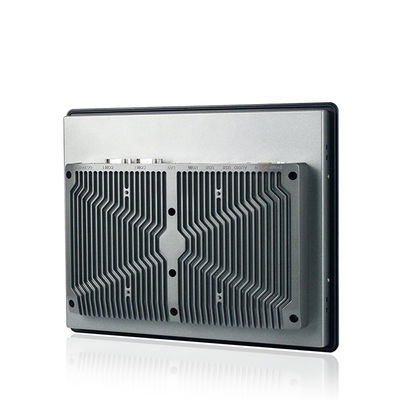

Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
I/O Interface:

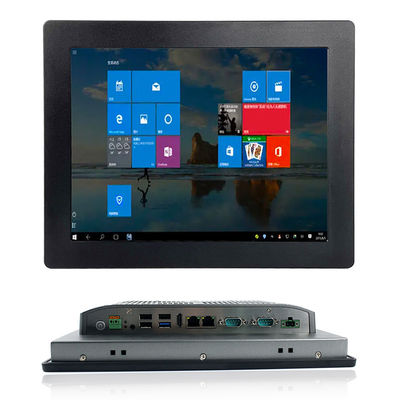

The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
Wide Working Voltage:
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection
Extended Operating Temperature:
The computer supports extended temperature(-20°C ~ 70°C) to allow application in difficult and harsh environment.
1. 12" TFT LED
2. 5 wire resistive touch screen
3. Intel Core i5-8265U Dual Core 1.6GHz
4. 2xLAN, 2xRS232/422/485
5. Built-in TPM2.0 for Hardware-based Security
6. Wide voltage DC 9V~36V
7. -20°C ~ 70°C extended operating temperature
8. IP65 Compliant Front Panel
| PPC-5012SAR | ||
| System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12" LED |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% | |
| Response Time | <10ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3500W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Black | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 304 x 243 x 60 mm | |
| Cut-out Size | 290 x 229 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦35W | |
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
