Product Details:
|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | VGA/HD-MI/LAN/USB/COM |
| Power Input: | DC 9V~36V | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦20W | Working Time: | 7*24h |

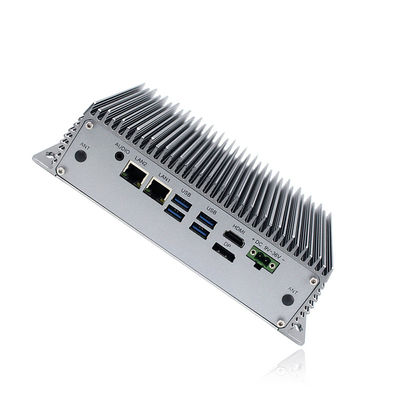

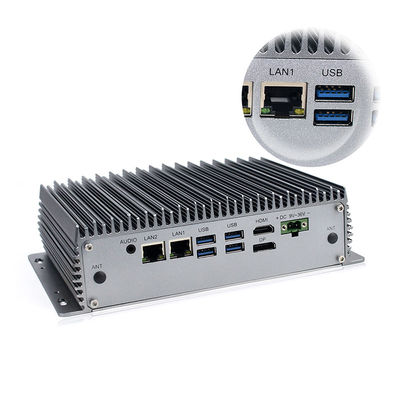

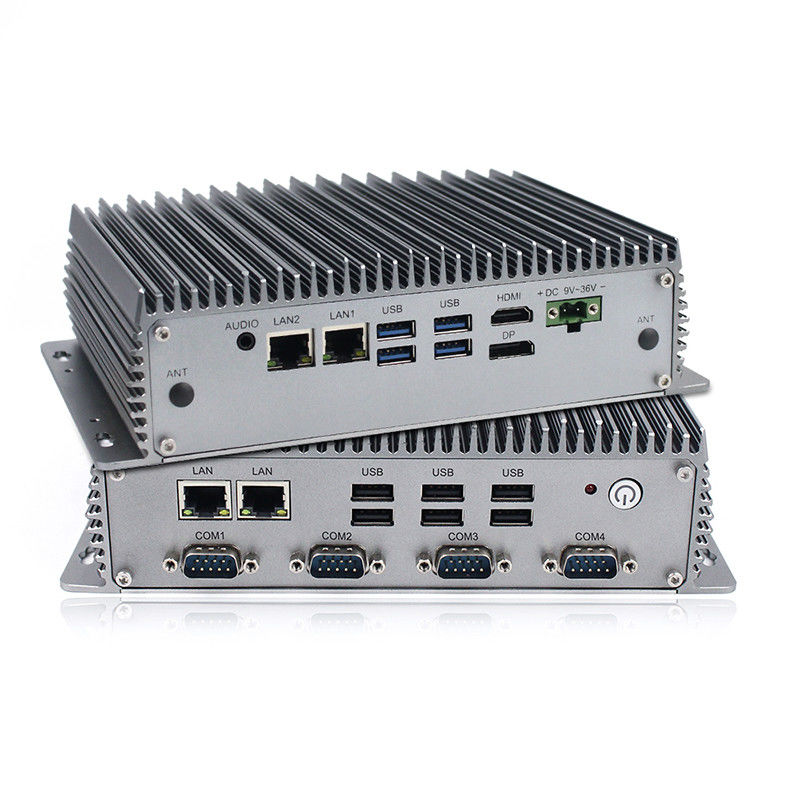

| High Light: | I3 8145U fanless embedded box pc,Edge Computing fanless embedded box pc |
||
Feature
Fanless mini PCs are industrial grade computing solutions designed and built to withstand deployment in challenging environments to manage workloads for processing, storage, and connectivity. Fanless mini computers are great for deployment in challenging environments because they are passively cooled, utilize solid-state drives, and can be configured using wide temperature range components. All of these key features result in a ruggedized, fanless mini computing solution that has no moving parts and is resistant to dust, dirt, shocks, vibrations, and extreme temperatures.
2. 1x DDR4L 2400MHz 4GB. Max up to 32GB
3. 4x GbE supporting Wake-on-LAN and PXE
4. 4*COM (RS232/R485 optional), 1*WiFi / Bluetooth/4G optional
5. Encryption onboard TPM2.0 module supported
6. DC9V～36V wide voltage input
7. -20°C ~70°C extended operating temperature
| EFIC-1000OC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L2 Cache | 4MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x DP / 1 x HD-MI |
| LAN | 4 x LAN | |
| USB | 6 x USB2.0 / 4 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
Advantages:
1. TPM 2.0 Hardware Security Encryptions
Fanless Mini Computer is equipped with TPM 2.0 to safeguard the device, data, and transmissions from malicious actors. TPM 2.0 is an advanced crypto-processor that offers hardware-based protection that is tamper-resistant
