Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged

Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged
Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged

Large Image :  Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: EFIC-1000PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged

Description
CPU: Intel Core I5-8265U Quad Core 1.6GHz Memory: DDR4L 2400MHz 4GB, Up To 32GB
Harddisk: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional I/O Port: VGA/HD-MI/LAN/USB/COM
Power Input: DC 9V~36V Operating System: Windows 10, Linux, Ubuntu, Debian
Power Consumption: ≦20W Working Time: 7*24h
High Light:

Oem industrial edge computer

,

8th Gen industrial edge computer

,

I5 industrial edge computer

Industry 4.0 Oem 8th Gen I5 Rugged Embedded Industrial Edge Computer With 10*USB

Feature

Industrial computers drive the efficiency and insight enrichment at the heart of Industry 4.0. Engineered and manufactured to endure the challenging physical conditions of a variety of industrial environments, industrial computers are high-performance, scalable upgrades to traditional single-purpose PLCs. By consolidating numerous workloads within a single, versatile industrial computer, points of failure and overall hardware footprint are reduced. Strong localized compute and low-latency communication generate real-time actionable insights, inform inference analysis applications and enable sophisticated automation.



1. Intel Core i5-8265U Quad core 1.6GHz


2. 1x DDR4L 2400MHz 4GB. Max up to 32GB



3. 4x GbE supporting Wake-on-LAN and PXE



4. 4*COM (RS232/R485 optional), 1*WiFi / Bluetooth/4G optional



5. Encryption onboard TPM2.0 module supported



6. DC9V~36V wide voltage input

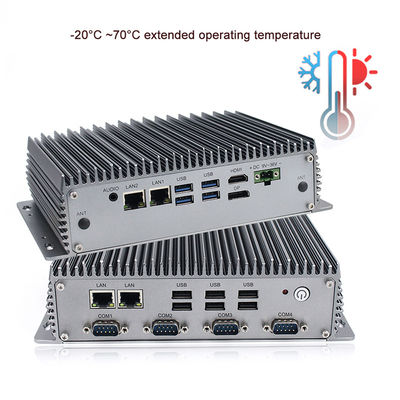

7. -20°C ~70°C extended operating temperature



EFIC-1000PC
System CPU Intel Core i5-8265U Quad core 1.6GHz
L2 Cache 6MB
Chipsets Intel 8th Skylake-U SOC
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional
Graphics Intel HD Graphics 610
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
Operation System Windows 10, Linux, Ubuntu, Debian
I / O VGA 1 x DP / 1 x HD-MI
LAN 4 x LAN
USB 6 x USB2.0 / 4 x USB3.0
COM 4 x RS232
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Institutional Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
VESA Mounting 208 x 100 mm / 208 x 60 mm
Product Dimension 220 x 145 x 62 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 9V~36V
Power Consumption ≦20W


Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged 0Oem 8th Gen I5 Industrial Edge Computer Industry 4.0 Rugged 1

Applications

ATM

Pos machine

vending machine

Digital signage

Industrial automation

kiosk

machine control

telecomommunication

laser cutting machine

CNC machine





Advantages:

High performance to price ratio

All material good quality and good brand

ODM,OEM service

According to customer demand to find the most appropriate personalized hardware solutions for customer,

help you quickly launch your own embedded production



Industrial embedded PC computers with fanless operation avoid dust ingress whilst operating in industrial environments. The fanless operation on these embedded box pcs also increases shock resistance, reliability and durability, plus extended temperature ranges can be achieved. These industrial pcs are quieter than computers using fans and in industries such as food and pharma, the fanless operation avoids the circulation of dirt and pathogens around the environment.
