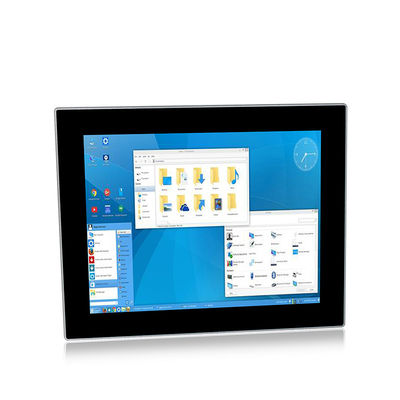

Product Details:
|
| IP Rate: | IP65 Front | Panel Size: | 12" |
|---|---|---|---|
| Touch Screen Type: | Multi-Touch PCAP | Resolution: | 800 X 600 |
| Aspect Ratio: | 4:3 | Viewing Angle: | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) |
| Display Brightness: | 400 Cd/m2 | I/O: | 1*VGA, 1*HDMI, 1*DVI, 1*USB |
| High Light: | Ip65 Capacitive Touch Monitor,VGA Capacitive Touch Monitor,HDMI multi touch screen monitor |
||
Feature
The industrial touch monitor is ideal for applications such as Industry 4.0, Rail Transit, Equipment Control Cabinet, Industrial Equipment Control, Cabin Driving, Vision Detection and CNC Control Panel.
3. HDMI/VGA/DVI multiple signals input supported

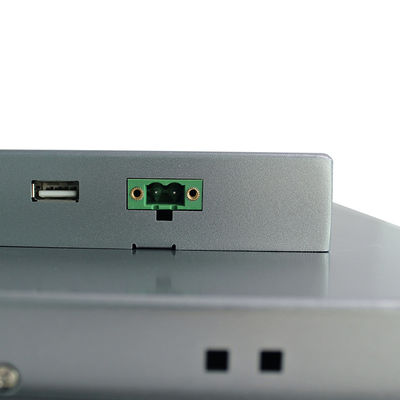

4. DC12V Input, (+9V～36V) wide voltage input optional
5. -20°C ~ 70°C extended operating temperature
6. IP65 Compliant Front Panel
7. Support wall mounting, embedded mounting, desk stand mouting etc.
| PM-H012SAC | ||
| LCD Panel | Panel Size | 12" LED |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI | |
| DVI | 1 x DVI | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x OSD Control Key | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

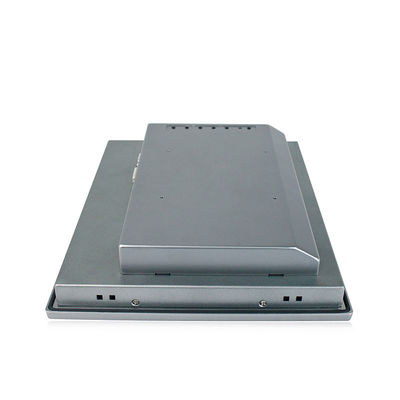

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 304 x 243 x 55 mm | |
| Cut-out Size | 290 x 229 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage |
DC 12V / optional(+9V~36V) |
|
Products Advantages
1. Full Material is aluminium alloy, it's very sturdy and durables.
2. Symmetric design can be utillized in portrait mode with style.
3. Industrial LCD panel and touchscreen is industrial grade, high nits, true color and suitable for poor working enviroment
4. Signal ports is VGA, DVI and HDMI, suitable for different applications.
5. -20C to +70°C Wide temperature support.
6. Accept customization
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
