Product Details:
|
IP Rating: | Front IP65 | Led Panel: | 19" LED |
---|---|---|---|
Resolution: | 1280 X 1024 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
Memory: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
TPM2.0: | Yes | Working Voltage: | DC IN 9V~36V |
High Light: | PCAP Industrial All In One Touchscreen PC,TPM2.0 Industrial All In One Touchscreen PC,1500nits All In One Panel |
Feature

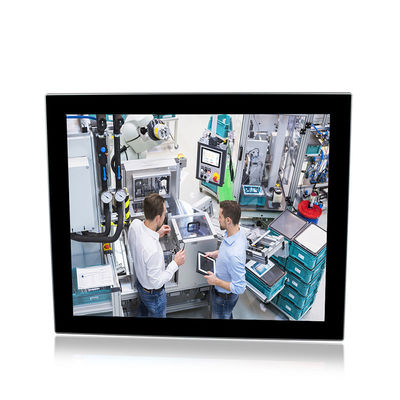

PPC-3019SAC is a cost-effective industrial grade Panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.
The panel pc is compatible with Windows 10, Linux OS and embedded OS, also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
1. Aluminium alloy front panel, front IP65 waterproof
2. 19" TFT LED, resolution 1280*1024
3. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference.
4. Intel Core i3-8145U Dual Core 2.1GHz
5. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection
6. Built-in TPM2.0 for Hardware-based Security
7. DC 9~36V, overcurrent, overvoltage & reverse connection protection
8. 1000nits, 1500nits sunlight readable optional
PPC-3019SAC | ||
System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
L3 Cache | 4MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |

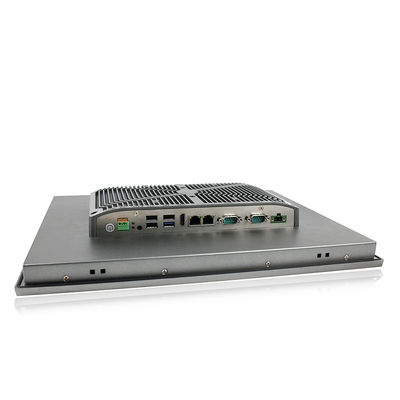

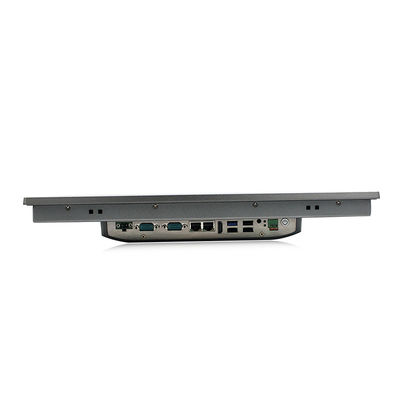

I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 19" LED |
Resolution | 1280 x 1024 | |
Aspect Ratio | 5:4 | |
Display Brightness | 450 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 438 x 362 x 60 mm | |
Cut-out Size | 420 x 345 mm | |
Packing Size | 500 x 180 x 450 mm | |
Gross Weight | 8 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦45W |
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.
4. Heat sink in back case great for heat dissipation and beautiful appearance.
5. Working voltage is wide range 9-36V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
