45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2

45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2
45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2 45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2 45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2

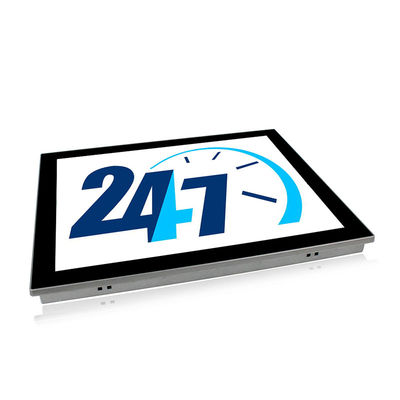

Large Image :  45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-5019SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2

Description
IP Rating: Front IP65 Size: 19" LED
Resolution: 1280x1024 Processor: Intel Core I5-8265U Quad Core 1.6GHz
RAM: 4GB, Up To 32GB HDD: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive Touch
TPM 2.0: Yes Working Voltage: DC IN 9V~36V
High Light:

45W Industrial Touch Panel PC

,

1280x1024 Industrial Touch Panel PC

,

450cd/M2 Industrial Panel Mount Monitor

8th Gen Win10 IOT Ip65 Industrial Grade Touch Screen Panel PC Manufacturer

Feature

TPM 2.0:

The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.



IP65 Front Panel:

The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.

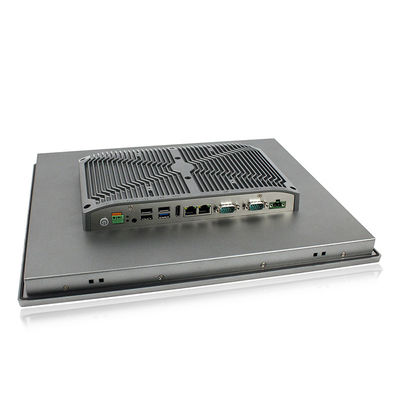

I/O Interface:

The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)



Wide Working Voltage:

This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection


1. Aluminium alloy front panel, front IP65 waterproof

2. 19" TFT LED, resolution 1280*1024

3. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference.



4. Intel Core i5-8265U Quad Core 1.6GHz

5. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection

6. Built-in TPM2.0 for Hardware-based Security

7. DC 9~36V, overcurrent, overvoltage & reverse connection protection

8. High performance motherboard, fanless design, 7x24 continuous operation.




PPC-5019SAC
System CPU Intel Core i5-8265U Quad Core 1.6GHz
L3 Cache 6MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 19" LED
Resolution 1280 x 1024
Aspect Ratio 5:4
Display Brightness 450cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 438 x 362 x 60 mm
Cut-out Size 420 x 345 mm
Packing Size 500 x 180 x 450 mm
Gross Weight 8 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦45W



45W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2 045W 1280x1024 Industrial Touch Panel PC Win10 IOT Ip65 450cd/M2 1




Competitive Advantages:

Well and High Quality Control;

Prompt Delivery;

Competitive Price;

Earth-friendly Products;

Small Trial Order Acceptable;

OEM/ODM service welcome.



Application

Industry 4.0

Rail Transit

Equipment Control Cabinet

Industrial Equipment Control

Cabin Driving

Vision Detection



Our Advantage

1. Experience

QYT has more than 10 years rich experience in Industrial Computer/monitor filed.



2. Wide products line

7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.



3. Customization functions

It offers rich of interface to meet csutomers needs.



4.Widely useage environment

QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
