Product Details:
|
| Waterproof Rate: | IP65 / IP66 | Size: | 19" |
|---|---|---|---|
| Touch Screen: | Capacitive Touch | Resolution: | 1280x1024 |
| VESA Mounting: | 100 X 100 Mm | Display Brightness: | 450 Cd/m2 |
| I/O: | 1*VGA, 1*HDMI, 1*DVI, 1*USB | Material: | High-strength Al-alloy, Support IP65 |
| Color: | Gray | Warranty: | 1 Year |
| Highlight: | 1280x1024 NTSC Capacitive Touch Monitor,450cd/M2 Capacitive Touch Monitor,PCAP Touch Screen Led Monitor |
||

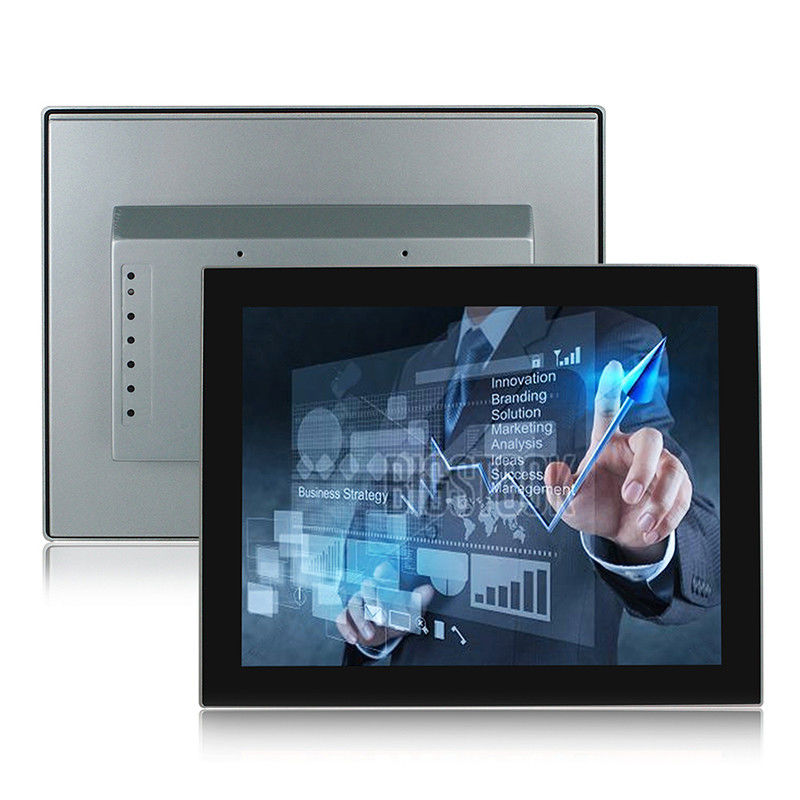

Feature
The industrial touch monitor is ideal for applications such as monitoring equipment, supervisory controller, process control systems, CNC machinery control, numerical control device and industrial automation.
1. Aluminum alloy structure on the front panel, front panel IP65 waterproof standard.
2. 19 "TFT LED, resolution 1280 x 1024, capacitive touch.
3. The installation method: embedded installation/VESA installation.

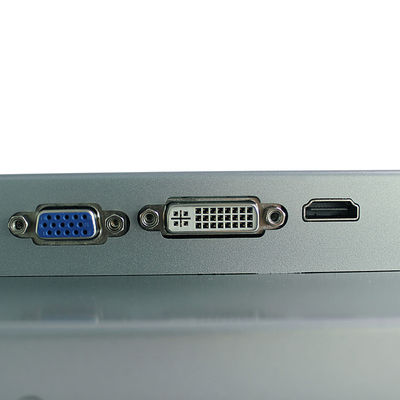

4. Support HDMI/VGA/DVI a variety of signal input.
5. DC 12 v power input, optional (+ 9 v ~ 36 v) wide voltage input.
| PM-H019SAC | ||
| LCD Panel | Panel Size | 19" LED |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI | |
| DVI | 1 x DVI | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x OSD Control Key | |

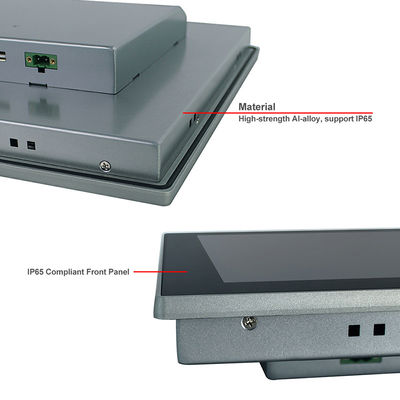

| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 438 x 362 x 55 mm | |
| Cut-out Size | 420 x 345 mm | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
