Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 12.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
| High Light: | OEM Waterproof Touch Screen PC,IP66 Waterproof Touch Screen PC,IP66 HMI Panel Pc |
||

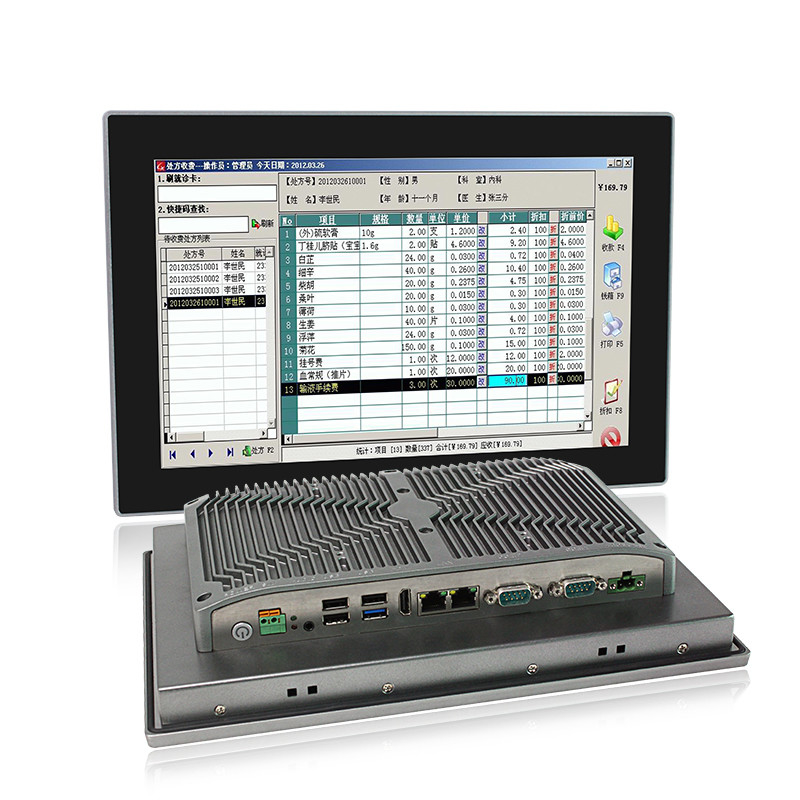

OEM Waterproof Touch Screen PC IP66 HMI Panel Pc With USB 3.0
OEM dual LAN IP66 waterproof HMI panel pc, panel mount industrial computer touchscreen with USB 3.0
About US:
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
Industrial Touch Panel PC:

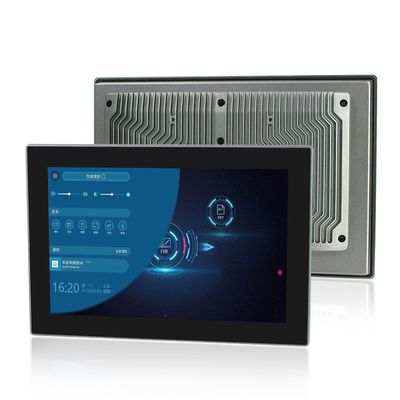

Unlike traditional enterprise all-in-one PCs, industrial panel PCs are engineered designed to withstand the harshest environments. VESA mountable and touchscreen capable, our panel PCs are ready to be embedded and integrated into virtually any industrial environment, even outdoors. Fanless cooling helps protect internal components from dust and debris that typically damages computers in industrial areas. QYT's Industrial Panel PCs are also customizable with multiple legacy ports and expansion slots to ensure their versatility and ability to be adapted to any job.
Description Of Industrial Touch Panel PC
15" front IP65 Industrial Panel PC
1. 15" TFT LED, resolution 1024 x 768, capacitive touch
2. Intel Core i5-8365U Quad Core 1.6GHz
3. 4GB/8GB/16GB/32GB RAM, 128G/256G/512G SSD
4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / Linux, Ubuntu, Debian
6. DC9V~36V Wide Voltage Input
7. TPM2.0, Hardware Encryption
8. -20°C~70°C Operating Temperature;
|
PPC-5012WAC |
||
|
System |
CPU |
Intel Core i5-8265U Dual Core 1.6GHz |
|
L3 Cache |
6MB |
|
|
Memory |
DDR4L 2400MHz 4GB, Up to 32GB |
|
|
Harddisk |
1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
|
|
Graphics |
Intel HD Graphics 620 |
|
|
Network |
Intel® I211-AT GbE LAN |
|
|
Audio |
Realtek ACL662 Audio controller |
|
|
TPM |
TPM 2.0 |
|
|
Operation System |
Windows 10 / Linux, Ubuntu, Debian |
|
|

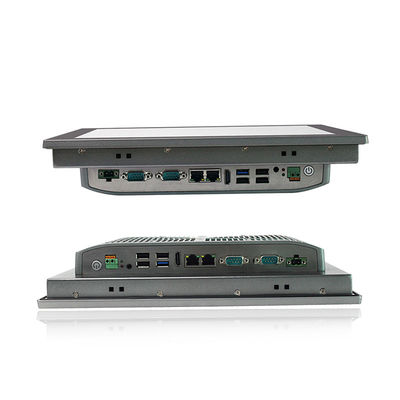

I / O |
HDMI |
1 x H-DMI |
|
LAN |
2 x LAN |
|
|
USB |
4 x USB 3.0 |
|
|
COM |

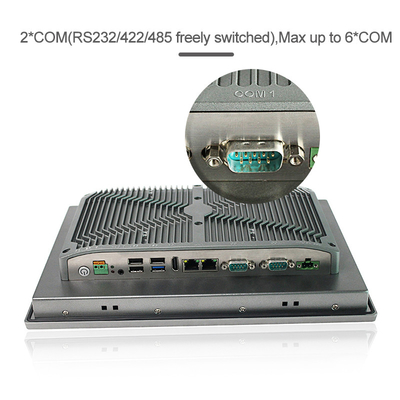

2 x RS-232 / 422 / 485 |
|
|
Audio |
1x Audio_out & Mic_in |
|
|
Wireless Network |
WiFi / Bluetooth ( 4G / Optional ) |
|
|
Other I/O Interface |
1 x Power Switch |
|
|
LCD Panel |
Panel Size |
12.1" Led |
|
Resolution |
1280 x 800 |
|
|
Aspect Ratio |
16:10 |
|
|
Display Brightness |
450 cd/m2 |
|
|
Contrast Ratio |
700:1 |
|
|
Backlight Lifetime |
50000 Hr (min.) |
|
|
Viewing Angle |
80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
|
|
Touch screen |
Touch Screen Type |
Multi-Touch PCAP |
|
Transmittance |
>90% |
|
|
Response Time |
<5ms |
|
|
Surface Hardness |
≥7H |
|
|
Supply Voltage |
5.0V DC |
|
|
Touch Life |
≧ 3000W |
|
|
Institutional |
Material |
High-strength Al-alloy, support IP65 |
|
Color |
Gray |
|
|
VESA Mounting |
VESA: 100 x 100 mm |
|
|
Waterproof Rate |
IP65 |
|
|
Product Dimension |
314 x 216 x 60 mm |
|
|
Cut-out Size |
300 x 203 mm |
|
|
Packing Size |
450 x 170 x 350 mm |
|
|
Gross Weight |
5 KG |
|
|
Power and Environment |
Operating Temperature |
-20~70°C |
|
Storage Temperature |
-30~80°C(-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
|
Working Voltage |
DC IN 9V~36V |
|
|
Power Consumption |
≦35W |
|
What is an industrial Panel PC?
An Industrial panel PC is an all-in-one computer manufactured with industrial grade components and energy-efficient fanless cooling systems, making it extremely rugged, similar to an industrial mini PC. Designed to operate reliably in harsh industrial and outdoor environments, industrial touch screen panel PCs withstand vibration, shock, exposure to moisture, dust, extreme temperatures and temperature fluctuations. Enclosed or open frame, they are highly customizable, durable and reliable. A QYT Industrial panel PC has a less than 2% fail rate and a 3 - 5 year product life cycle.
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
