Product Details:
|
| IP Rating: | Front IP65/IP67 | Led Panel: | 23.8" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | Harddisk: | 1 X MSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 2xLAN, 4xUSB, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Multi-Touch PCAP |
| Working Voltage: | DC IN 9V~36V | Operation System: | Windows 10 / Linux, Ubuntu, Debian |
| High Light: | Front IP67 Industrial touch computer,FHD LED Industrial touch computer,24 Inch IP67 Panel PC |
||

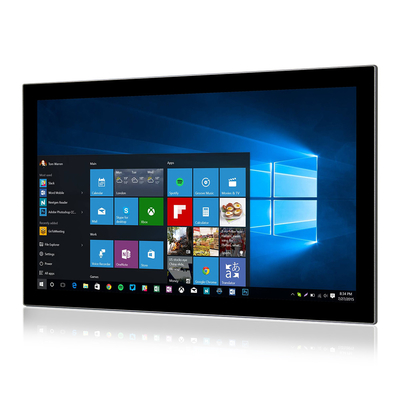

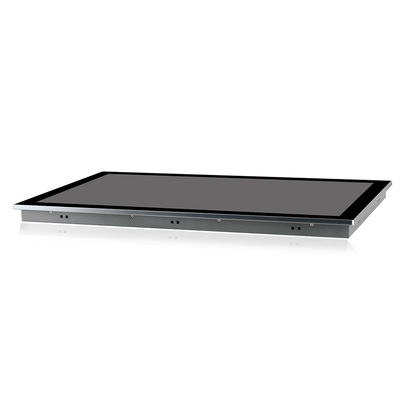

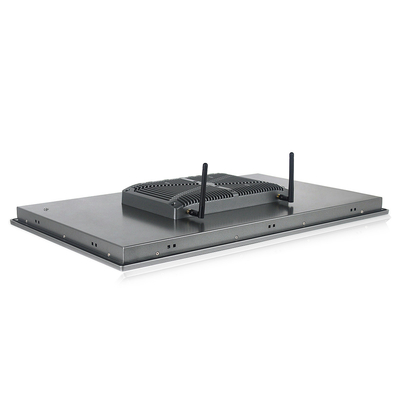

Front IP67 Industrial touch computer i3 i5 i7 CPU optional 24 inch Panel PC Industrial with DC IN 9V~36V
24 inch Industrial Embedded Touch Panel PC HMI with aluminum housing and a completely flat IP65 front. The system is equipped with an onboard Intel 8th Gen. Intel Core i3-8145U Dual Core 2.1GHz, supports DDR4L 2400MHz 4GB, Up to 32GB memory, Projected Capacitive touch screen, wide range DC 9~36V power input , 4 x USB, 2 x LAN and 2 x COM.
Features
1. 23.8" FHD LED display with LED backlight
2. Fanless design with Intel Core i3-8145U Dual Core 2.1GHz
3. 2 GbE LAN, 4 USB, and 2 COM
4. IP65-rated plastic front bezel
5. Supports RFID and wireless module (optional)
6. External AT/ATX mode selection switch
7. Easy access storage & RAM design
8. Supports panel mount, wall mount, VESA arm, and desktop stand
9. RS-232/422/485 with DC IN 9V~36V
| PPC-3024WAC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 23.8" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 / IP66 | |
| Product Dimension | 585 x 354.5 x 63 mm | |
| Cut-out Size | 568 x 337 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
ODM /ODM service:
Appearance color
Product size
Mold custom I
nstallation method
Brightness
Resolution
Anti dazzle
Explosion proof screen
Touch screen
Wide Voltage I
/O Ports
Protective grade
Wide temperature
4G/5G/WIFI Bluetooth
Camera
Scanning module
Fingerprint reader module
Maganetic stripe card reader module
IC reader module
NFC/RFID reader module
ID card reader module
GPIO
Custom interface
