Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 10.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | Harddisk: | 1 X MSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 2xLAN, 4xUSB, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
| Working Voltage: | DC IN 9V~36V | Operation System: | Windows 10 / Linux, Ubuntu, Debian |
| High Light: | i5-8265U industrial all in one panel PC,DC36V industrial all in one panel PC,fanless 10 inch panel computer |
||
i5-8265U industrial all in one panel PC 10 inch panel computer with DC IN 9V~36V
Product Introduction

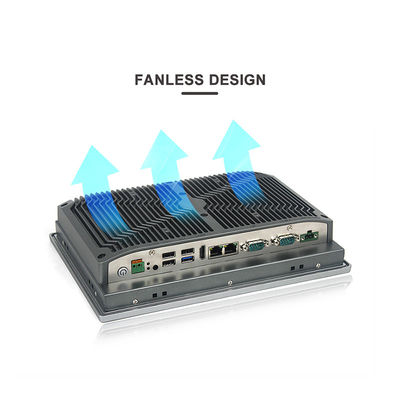

PPC-5010WBC is a 10.1 inch fanless touch panel computer. It is powered by Intel Core i5-8265U Quad Core 1.6GHz. PPC-5010WBC has a 10.1-inch 1280 x 800 LCD display with a projected capacitive multi-touch or resistive touch optional touchscreen, 400 nits of brightness and LED backlight. Moreover, this compact touch panel computer offers easy access to storage and RAM. The robust industrial touch panel PC has an ultra-slim housing for use in space-constrained environments. It can operate reliably in harsh environments with its wide operating temperature of -20°C to +70°C. It is a cost-effective solution to achieve a high degree of stability and adaptability for use in multimedia kiosks or as a human machine interface (HMI) for smart manufacturing and rugged retail fields.
| PPC-5010WBC | ||
| System | CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 2 x USB 2.0 / 3 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 900:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 | |
| Product Dimension | 275 x 194 x 58 mm | |
| Cut-out Size | 263 x 182 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦35W | |
Packaging Details:
We usually packed with strong EPE, Foam + Carton(Each two sets packed into one carton). Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.
FAQ
Q1: Which size do you provide for the PCAP projected Capative All-in-one Touch Computer?
A1: Size: 8” 10.1” 10.4” 12.1” 15” 15.6” 17” 19” 21.5” 24”
Large size, customized size available.
Q2: Which kind of the inside computer do you have?
A2: Our standard J1900+4G+128G SSD, i3/i5/i7 optional.
Q3: Is it Driver-free? What OS can the PCAP Capacitive touch screen panel support?
A3: Yes, it is driver-free. Support Windows, Android, Ubantu, Linux, …
Q4: Is it water proof, anti-vandal, anti-glare, true flat with 10 point multi touch?
A4: All are available, pls confirm when you order to us.
Q5: What is your MOQ? Sample in stock?
A5: No limited on MOQ, sample testing is ok. Standard size in stock. It can be dispatched to you very quickly.
Q6: What's the time of delivery ?
A6: Depends on order quantity and our production schedule.
Q7: What paying methods do you accept ?
A7: Alibaba Trade Assurance, T/T, Paypal , etc.
Q8: What is our the warranty policy ?
A8: One year warranty. 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes or 36-monthes with extra cost.
