Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 64GB | HDD: | M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Resistive / Capacitive Touch |
| High Light: | embedded fanless industrial panel pc,IP65 embedded fanless industrial panel pc,PCAP Touch fanless embedded computer |
||
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
Industrial touchscreen computers designed and manufactured by QYT survive the toughest and harshest environments plus industrial applications. Our rugged computers provide the highest level of long-term reliability in 24/7 operation. These industrial touchscreen PCs are designed and built in house with a focus on reliability as well as quality. Our industrial computer portfolio includes: Industrial Panel PC, Waterproof Panel PC, Embedded Fanless Industrial Computer, Device Control Panel, Industrial Touch Monitor.
QYT Industrial Touch Panel PC Advantages:
Easy to Upgrade
Industrial Grade Components
Universal Connectivity
Waterproof & Dustproof
Shock & Vibration Resistant
Windows 10 / Linux, Ubuntu, Debian
Industrial Touch Panel PC:
1. Aluminium alloy front panel, front IP66 waterproof
2. 21.5" TFT LED, resolution 1920 x 1080, 5 wire resistive touch
3. Intel i5-8265U CPU:1.6GHz silent fanless industrial panel PC
4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, overcurrent, overvoltage & reverse connection protection
| PPC-5215WAR | ||
| System | CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB | |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian | |
| I / O | Video | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB 3.0 / 1 x USB 2.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 21.5" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% | |
| Response Time | <10ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3500W | |
| Institutional | Material | High-strength Al-alloy |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 / IP66 | |
| Product Dimension | 538 x 330 x 62 mm | |
| Cut-out Size | 520 x 312 mm | |
| Packing Size | 630 x 190 x 480 mm | |
| Gross Weight | 12 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦40W | |
Features:
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dust-proof.

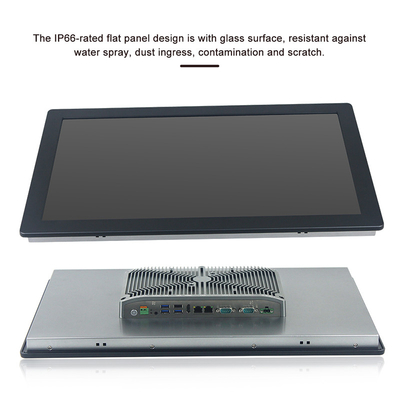

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with tempered glass for vandal-proof.
6. 9V-36V wide voltage.
7. High performance motherboard, 7x24 continuous operation.
