Product Details:
|
| Led Panel: | 17" LED | Resolution: | 1280 X 1024 |
|---|---|---|---|
| CPU: | Intel Core I5-8265U Dual Core 1.6GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | 17" LED Windows11 Touch Screen PC,Waterproof Capacitive Touch Screen Panel PC,Industrial Automation Waterproof Touch Screen PC |
||

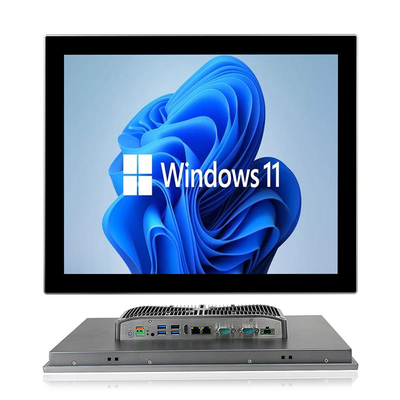

Waterproof Touch Screen PC Feature:
1. Aluminium alloy front panel, front IP66 waterproof
2. 17" TFT LED, resolution 1280×1024, 10 points capacitive touch
3. Intel Core i5-8265U Quad Core 1.6GHz
4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, overcurrent, overvoltage & reverse connection protection
| PPC-5017SAC | |
| System | |
| CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |

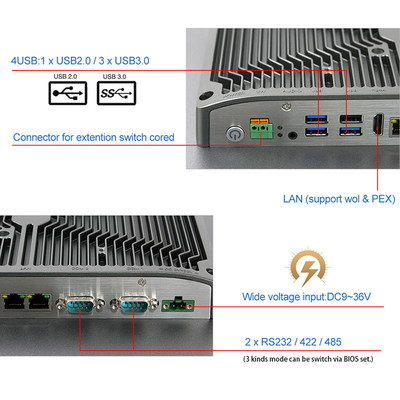

| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 17" LED |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 5:4 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 800:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |

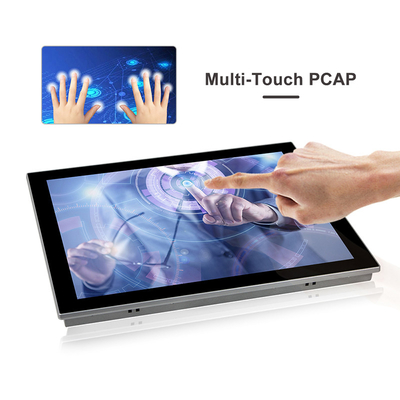

| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 395 x 327 x 62 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
Waterproof Touch Screen Industrial Panel PC are industrial control computers specially designed for industrial use.
Their basic performance and compatibility are similar to those of commercial computers.
But Industrial Panel PC focus more on stability in different environments, such as beverage production line control, automotive Production line control, etc.
It requires stability in harsh environments, such as dust-proof, waterproof, anti-static, etc.
Industrial Panel PCs do not require the current highest performance, but only meet the requirements of the system, and must meet the reliability and stability requirements in the industrial environment. Otherwise, if the production line encounters a computer crash, it may cause serious losses. So the standard values required by Panel PCs must meet strict specifications and scalability.
QYT industrial PCs are designed to run 24/7/365 with the following characteristics to meet the demands of the IoT:
