Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 12.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| I/O Ports: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | 10 Points Waterproof Touch Screen PC,TFT LED Waterproof Touch Screen PC,IP66 Touch Panel PC |
||

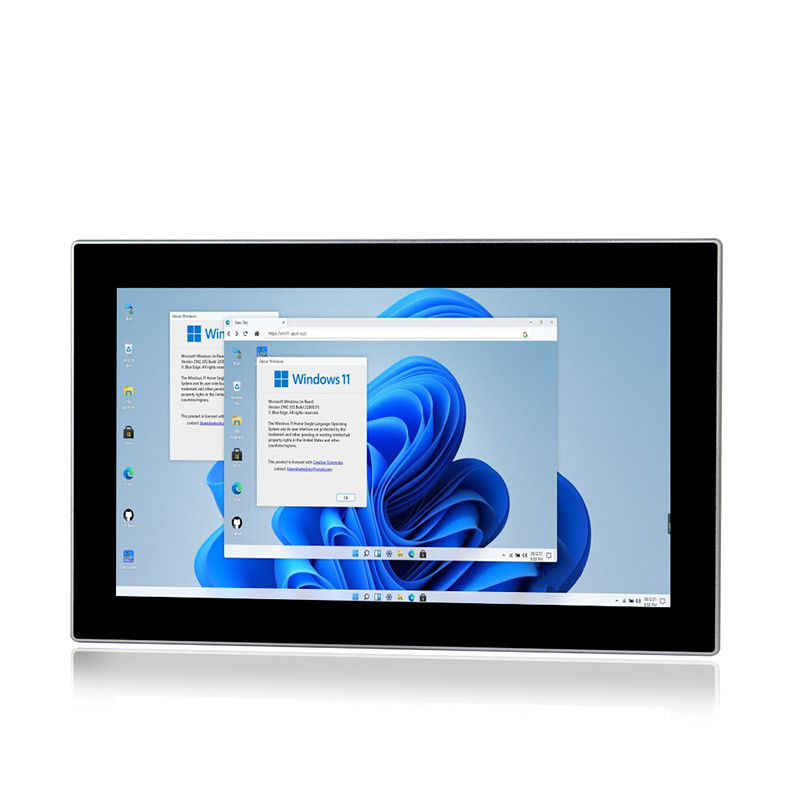

Feature of waterproof touch screen pc:
1. 12" TFT LED, resolution 1280*800, capacitive touch
2. Intel Core i3-8145U Dual Core 2.1GHz
3. 4GB RAM, 128G SSD

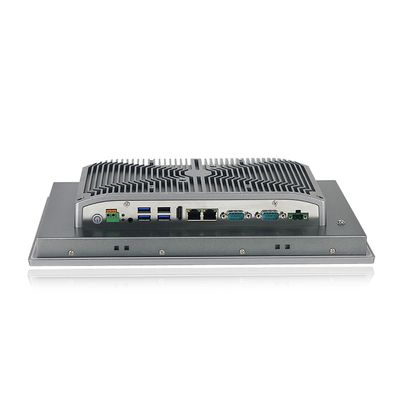

4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM 2.0
8. -20~70°C Operating Temperature
| PPC-3012WAC | |
| System | |
| CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 12.1" Led |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Display Brightness | 600 cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |

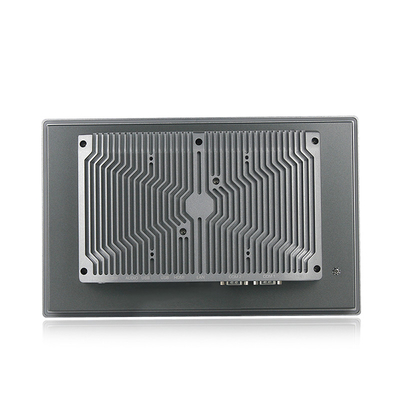

| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 314 x 216 x 62 mm |
| Cut-out Size | 300 x 203 mm |
| Packing Size | 450 x 170 x 350 mm |
| Gross Weight | 5 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
Advantages for Industrial Panel PC:
1. The front panels of industrial touch panel PCs are mainly made of die-casting aluminum alloy, and reach the NEMA IP65 protection level, sturdy, durable, and lightweight.
2. The industrial touch panel PC is small in size and easy to install and maintain.
3. Beautiful appearance and wide application
A Waterproof Touch Screen Industrial Panel PC from QYT combines advanced computing power with a range of hardened displays. Modular solutions enable easy customization and simplified upgrading while reducing maintenance costs. Our PPC line of IP65 Touch Screen panels with ingress protection and rugged plug and play attachable PCs, make for a modular and extremely economical solution. You choose the screen size and PC with the power and performance you need. QYT All-in-One Waterproof Touch Screen Panel PCs are available in various screen sizes and have a compact, fully integrated enclosure. Industrial touchscreen solutions from QYT provide a rugged solution for human/machine interface (HMI), in-vehicle use, inventory management, point of use, kiosk or industrial control applications.
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
