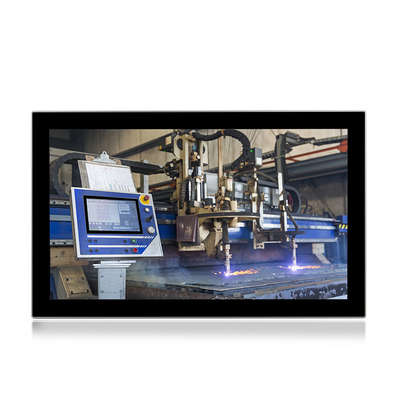

Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| I/O Ports: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | 21.5 Inch HMI Touch Screen Panel,Front IP65 HMI Touch Screen Panel,Hardware Encryption Industrial Panel PC |
||
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
HMI panel pc features:
| PPC-5215WAC | |
| System | |
| CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 21.5" FHD LED |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 538 x 330 x 62 mm |
| Cut-out Size | 520 x 312 mm |
| Packing Size | 630 x 190 x 480 mm |
| Gross Weight | 12 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦40W |
Advantages for Industrial Panel PC:
1. The front panels of industrial touch panel PCs are mainly made of die-casting aluminum alloy, and reach the NEMA IP65 protection level, sturdy, durable, and lightweight.
2. The industrial touch panel PC is small in size and easy to install and maintain.
3. Beautiful appearance and wide application
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
