Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 10.1" LED |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Celeron J16412 Quad-core 2.0GHz |
| Memory: | 4G/8G/16G/32G ( Optional) | Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Port: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | Waterproof Touch Screen PC RoHS,Waterproof Industrial Embedded PC,TPM 2.0 Industrial Embedded PC |
||
What is an industrial Panel PC?
An Industrial panel PC is an all-in-one computer manufactured with industrial grade components and energy-efficient fanless cooling systems, making it extremely rugged, similar to an industrial mini PC. Designed to operate reliably in harsh industrial and outdoor environments, industrial touch screen panel PCs withstand vibration, shock, exposure to moisture, dust, extreme temperatures and temperature fluctuations. Enclosed or open frame, they are highly customizable, durable and reliable. A QYT Industrial panel PC has a less than 2% fail rate and a 3 - 5 year product life cycle.
Waterproof Touch Screen PC Features:
1. Aluminium Alloy Front Panel, Front IP66 Waterproof
2. 10.1" TFT LCD, Resolution 1280x800, PCAP Touch
3. Intel Elkhart Lake Celeron J6412 2.0GHz Fanless Industrial Panel PC
4. 3xLAN, 2xCOM, Static Electricity & S Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
| PPC-C010WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 10.1" ( 16:10 ) |
| Resolution | 1280 x 800 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 900:1 |
| Backlight MTBF | 30000 Hr |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |

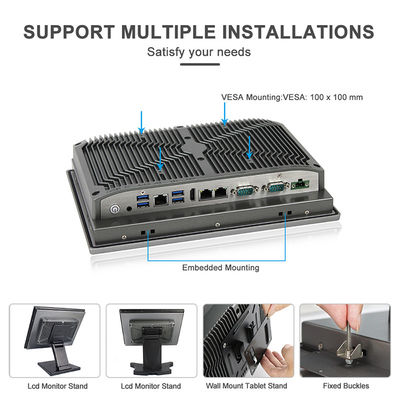

| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 275 x 194 x 58 mm |
| Cut-out Size | 263 x 182 mm |
| Packing Size | 360 x 180 x 320 mm |
| Weight (Net) | 2.5 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
QYT Industrial Touch Panel PC Advantages:
Easy to Upgrade
Industrial Grade Components
Universal Connectivity
Waterproof & Dustproof
Shock & Vibration Resistant
Windows 10 / Linux, Ubuntu, Debian
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
