Product Details:
|
| CPU: | Intel Celeron J6412 Quad Core 2.0GHz | Memory: | DDR4L 3200MHz 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 1 X M.2 120G SSD / ( 250G / 500G SSD) Optional / 1 X 2.5" SATA | I/O Port: | 1*HDMI, 1*DP, 1*VGA, 3*LAN, 8*USB, 6*COM |
| Power Input: | DC 9V～36V Voltage Input | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦20W | Working Time: | 7*24h |
| High Light: | Fanless Industrial Embedded Box PC,Industrial Embedded Box PC Intel Celeron J6412,Intel Celeron J6412 rugged embedded pc |
||
About US
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
| EFIC-2000CB | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x DP / 1 x HD-MI / 1 x VGA |
| LAN | 3 x LAN 10/100/1000/2500 Mbps |
| USB | 6 x USB2.0 / 2 x USB3.0 |
| COM | 2 x RS-232 / 4 x RS-232 / 422 / 485 |
| DIO | 4x isolated DI / 4x isolated DO |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/4A , 48W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦20W |
| Physical | |
| Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) |
| Mounting | 208 x 100 mm / 208 x 60 mm |
| Product Dimension | 220 x 145 x 62 mm |
| Packing Size | 360 x 180 x 320 mm |
| Weight (Net) | 1.5 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| EMC | CE, FCC,ROHS |
Advantages:
High performance to price ratio
All material good quality and good brand
ODM,OEM service
According to customer demand to find the most appropriate personalized hardware solutions for customer,
help you quickly launch your own embedded production

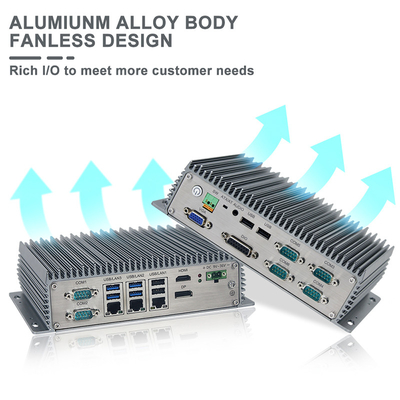

Industrial embedded PC computers with fanless operation avoid dust ingress whilst operating in industrial environments. The fanless operation on these embedded box pcs also increases shock resistance, reliability and durability, plus extended temperature ranges can be achieved. These industrial pcs are quieter than computers using fans and in industries such as food and pharma, the fanless operation avoids the circulation of dirt and pathogens around the environment.
