Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 24" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron J6412 2.0GHz |
| Memory: | DDR4L 4GB, MAX 32GB | HDD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
| High Light: | J6412 Fanless Industrial Computer,ODM Fanless Industrial Computer,J6412 Quad core HMI All In One |
||
What is an industrial Panel PC?
An Industrial panel PC is an all-in-one computer manufactured with industrial grade components and energy-efficient fanless cooling systems, making it extremely rugged, similar to an industrial mini PC. Designed to operate reliably in harsh industrial and outdoor environments, industrial touch screen panel PCs withstand vibration, shock, exposure to moisture, dust, extreme temperatures and temperature fluctuations. Enclosed or open frame, they are highly customizable, durable and reliable. A QYT Industrial panel PC has a less than 2% fail rate and a 3 - 5 year product life cycle.
HMI Panel PC Features:
1. 24" TFT LED, resolution 1920*1080, Multi-Touch PCAP
| PPC-C024WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |

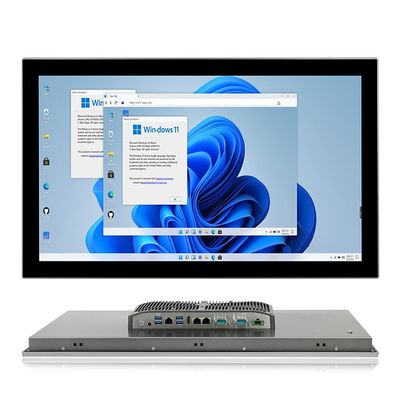

| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 23.8" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 30000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |

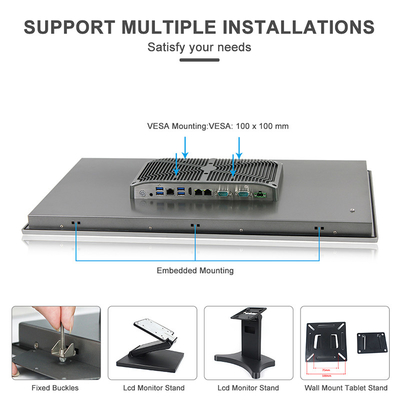

| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 585 x 354.5 x 63 mm |
| Cut-out Size | 568 x 337 mm |
| Packing Size | 730 x 200 x 530 mm |
| Weight (Net) | 6 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |

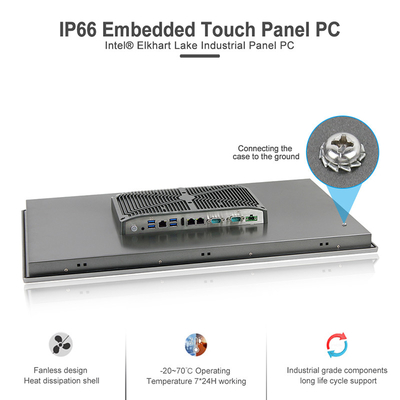

| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
