Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 17.3" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron J6412 2.0GHz |
| Memory: | DDR4L 4GB, MAX 32GB | HDD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
| High Light: | 17.3" HMI Panel PC,Fanless HMI Panel PC,36V Industrial All In One Computer |
||

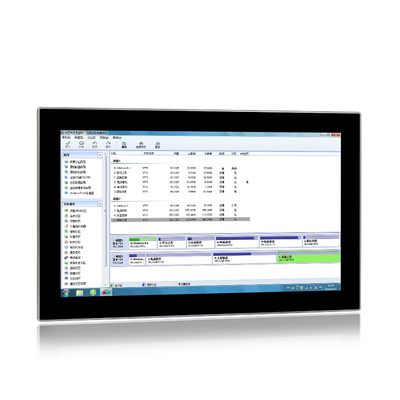

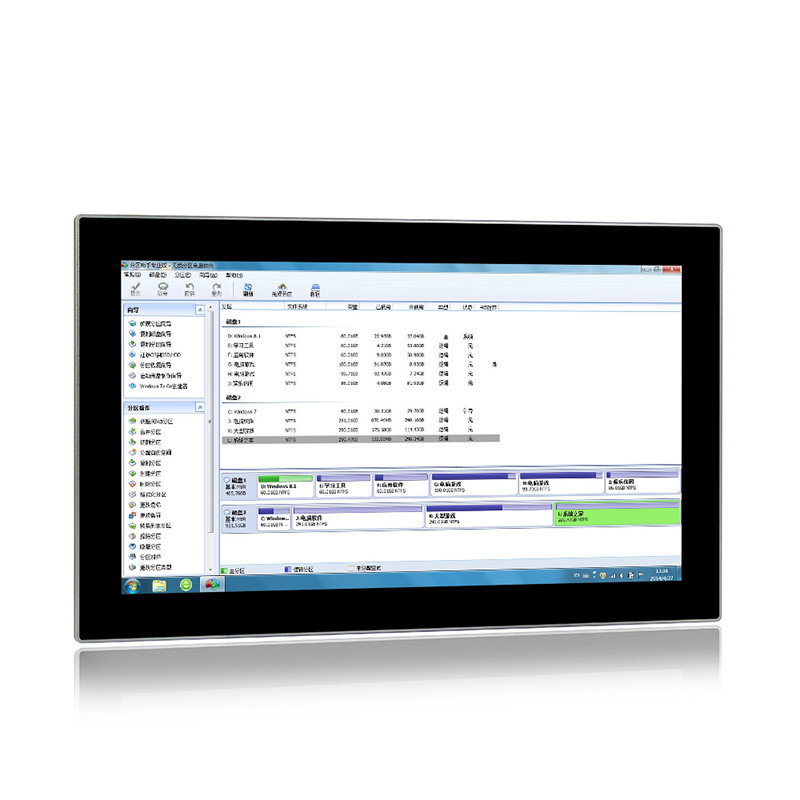

Panel Industrial Pc 17.3" Embedded Fanless Industrial All In One Computer
Industrial computer is a kind of bus structure, the production process and equipment testing and control tool general name, is for other industries to provide a safe, reliable, embedded industrial computer. Industrial computer is the core of industrial control, related to the whole system can be stable, efficient operation, often reinforcement, dust, moisture, corrosion, anti-interference and other special design.
Rugged Embedded Computer Features:
1. 17.3" TFT LED, resolution 1920 x 1080, Multi-Touch PCAP
2. Intel Celeron J6412 Quad Core 2.0GHz, all in one industrial touch pc
3. Ports: 1xHDMI, 4xUSB, 3xLAN, 2xCOM(RS232/422/485 freely switched)
4. Operating System: Windows10 / 11, Linux, Ubuntu
5. DC IN 9V~36V
| PPC-C173WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |

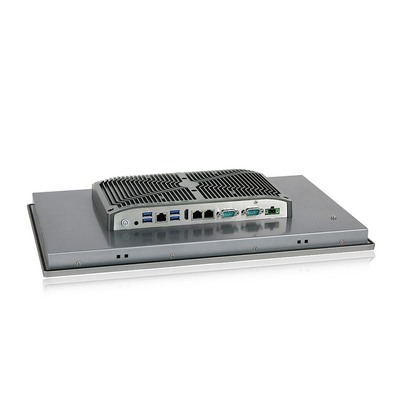

| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 17.3" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 400 cd/m2 |
| Contrast Ratio | 600:1 |
| Backlight MTBF | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 441 x 274 x 62 mm |
| Cut-out Size | 427 x 260 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.1 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Industrial Panel PCs Built for Long-Term Operation in the Most Demanding Work EnvironmentsBuilt to reliably withstand the rigors of long term operation in even the most extreme work environments, QYT’s industrial touchscreen panel PCs easily handle vibration, moisture, water, shock, and dust. Thanks to a fanless cooling system, these panel mountable pcs deliver reliable and quiet productivity 24/7. The interior of each industrial touchscreen PC is comprised of industrial-grade components designed to stand the test of time operating in harsh environments. The touchscreens and front bezels are IP65 waterproof rated.
