Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 15.6" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron J6412 2.0GHz |
| Memory: | DDR4L 4GB, MAX 32GB | HDD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
| High Light: | J6412 Flat Panel PC,Front IP65 Flat Panel PC,ODM Industrial All In One Touchscreen PC |
||
Advantages:
1. QYT industrial grade panel PC offer different installation style, such as desktop, embedded, wall-mounted and rack-mounted, cantilever.
2. Color: black or gray, offer appearance color customization service.
3. Industrial all-in-one PCs meet IP65 waterproof and dust-proof standard.
4. Working temperature is -20~70 °C, humidity range is 5%~95%.
5. Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.

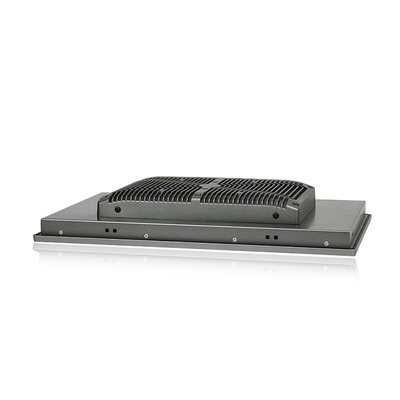

6. Aluminium alloy shell, high performance for heat-dissipation.
7. Support non-touch, resistive touch and capacity touch screen.
8. The panel PC provide standard I/O interface: VGA, HD-MI, LAN, USB, COM, also support other customized multi-ports.
9. Anti-interference design to meet EMI / EMC standards.
10. 8KV Static Electricity & 600W TVS Surge Protection
11. Offer multitude ports for customers according to different application. Support expansion.
Industrial All in One Touchscreen PC Features:

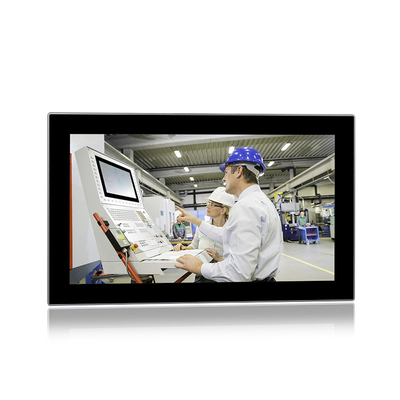

1. 15.6" TFT LED, resolution 1920 x 1080, capacitive touch
2. Intel Celeron J6412 Quad Core 2.0GHz
3. 4GB RAM, 128G SSD

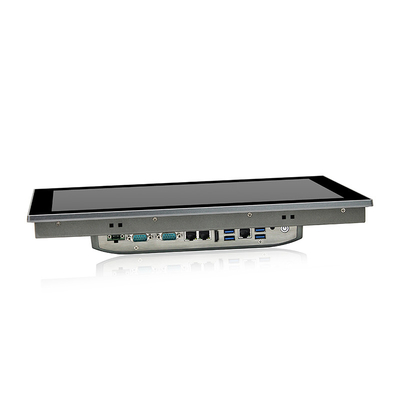

4. Ports: 1xHDMI, 4xUSB, 3xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10, Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM2.0, Hardware Encryption
8. -20°C~70°C Operating Temperature;
| PPC-C156WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 15.6" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 450 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 400 x 250 x 60 mm |
| Cut-out Size | 386 x 236 mm |
| Packing Size | 460 x 180 x 400 mm |
| Weight (Net) | 4.1 kg |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Competitive Advantages:
Well and High Quality Control;
Prompt Delivery;
Competitive Price;
Earth-friendly Products;
Small Trial Order Acceptable;
OEM/ODM service welcome.
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
