Product Details:
|
| LCD Size: | 17" ( 5:4 ) | Product Name: | Embedded Touch Panel PC |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Touch Type: | 10 Point PCAP |
| Power Mode: | Support AT, ATX Mode | Material : | Aluminum Alloy Panel, Anodized Treatment |
| Operating Temperature: | -20~70°C ( -4~158°F ) | IP Level: | Front Panel IP66 |
| High Light: | Vesa Mount Industrial Embedded PC,PCAP Touch Industrial Embedded PC,DC36V Embedded Touch Panel PC |
||

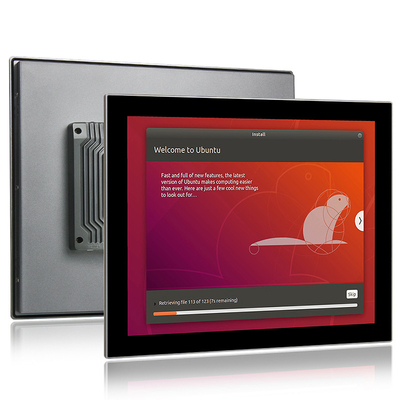

17 inch vesa mount embedded pc industrial with DC 9-36V
PPC-X017SAC is a smart fanless embedded tablet PC powered by Intel X6425E CPU. Supports 17-inch 1280 x 1024 LCD. Provide multiple I/O interfaces, DC9~36V wide power input, suitable for MES and machine HMI.
Features:

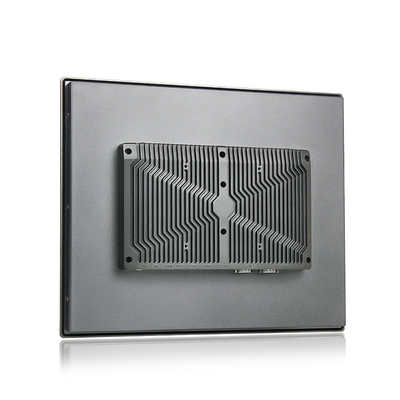

1. Aluminum die-casting chassis, fanless design
2. 17-inch LCD, capacitive/resistive touch
3. Intel X6425 CPU
4.1*DDR4L 3200MHz 4GB, MAX 32GB
5. 2*COM, 3 x LAN (10/100/1000/2500 Mbps, 4*USB3.0
6. DC 9~36V power input
7. Front panel IP66 registered waterproof
Our Services
1.Warranty: 1 year.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
| PPC-X017SAC | |
| System | |
| CPU | Intel® Elkhart Lake Atom X6425E Quad-Core 2.0GHz , TDP 12W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |

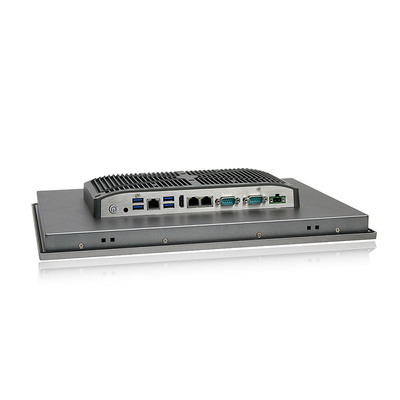

| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 17" ( 5:4 ) |
| Resolution | 1280 x 1024 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 395 x 327 x 60 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.3 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
