Product Details:
|
| Name: | Industrial Embedded Touch Panel PC | LCD Size: | 15" ( 4:3 ) |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Intel® Elkhart Lake Atom X6425E Quad-Core 2.0GHz , TDP 12W |
| Memory: | DDR4L 3200MHz 4GB, MAX 32GB | Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| TPM 2.0: | Yes | Operation System: | Windows 10 / 11， Linux, Ubuntu |
| High Light: | 15 inch Embedded Touch Panel PC,Embedded Touch Panel PC with 3LAN,industrial TPM2.0 Embedded Touch Panel PC |
||

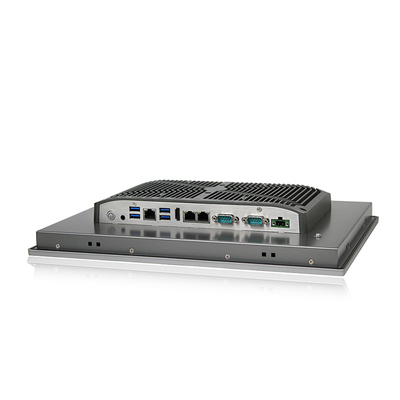

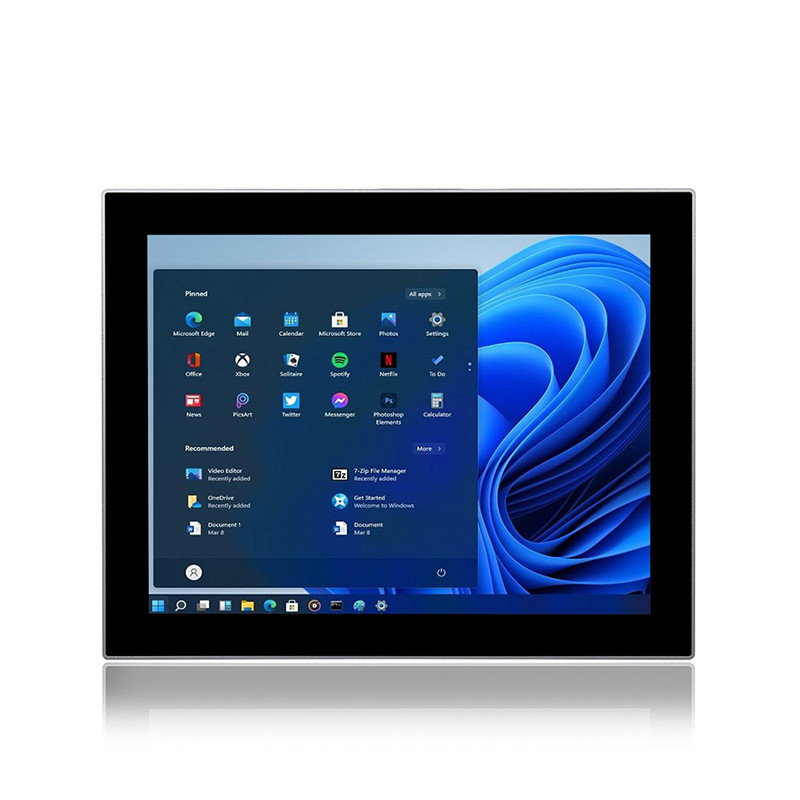

TPM 2.0 industrial 15 inch Embedded Touch Panel PC with 3LAN
Product Description of Industrial Embedded Touch Panel PC
15" Industrial Embedded Touch Panel PC
1, Precision Capacitive/Resistive Touch Screen, Resolution 1024 x 768
2, Dual Core High Performance Processor, DDR 3 Dual ChannelMemory, Solid State Disk (SSD)
3, Using Aluminum Alloy Casing, Solid, Meguiar, Durable
4, Gigabit RJ45 LAN Port, VGA Display Output, Double COM RS232 Interface
5, Upgrade The 4G/5G/WiFi Features Standard: Intel X6425E Processor, 15" Touch Screen.
|
PPC-X015SAC |
|
|
System |
|
|
CPU |
Intel® Elkhart Lake Atom X6425E Quad-Core 2.0GHz , TDP 12W |
|
L2 Cache |
1.5MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
|
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
|
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
Network |
Intel® 225-V GbE LAN |
|
Audio |
Realtek ACL897 Audio controller |
|
TPM |
TPM 2.0 |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 10 / 11, Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x H-DMI |
|
LAN |
3 x LAN (10/100/1000/2500 Mbps) |
|
USB |
4 x USB 3.0 |
|
COM |
2 x RS-232 / 422 / 485 |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
Optional (WiFi / Bluetooth / 4G / 5G ) |
|
Display |
|
|
LCD Size |
15" ( 4:3 ) |
|
Resolution |
1024 x 768 |
|
Brightness (cd/m²) |
350 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 Hr (min.) |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
10 point PCAP |
|
Surface Hardness |
≥7H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Mode |
Support AT, ATX Mode |
|
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
|
Power Protection |
OVP (Over Voltage Protection) |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum alloy panel, anodized treatment |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D) |
361 x 285 x 60 mm |
|
Cut-out Size |
347 x 271 mm |
|
Packing Size |
460 x 180 x 400 mm |
|
Weight (Net) |
3.8 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
Front Panel IP66 |
|
EMC |
CE, FCC,ROHS |
Application Area of 15" Industrial Embedded Touch Panel PC
· Automatic system
· Public Places
· Oil and gas;
· Cement;
· Machine builders
