Product Details:
|
| Name: | 17'' All In One Industrial Pc | CPU: | J6412/X6425E Optional |
|---|---|---|---|
| RAM: | DDR4L 3200MHz 4GB, MAX 32GB | SSD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| TPM 2.0: | YES | Ports: | 1*H-DMI/3*LAN/4*USB/2*COM |
| DC: | 9-36V | OS: | Windows 10 / 11， Linux, Ubuntu |
| High Light: | RS485 All In One Industrial PC,Capacitive Touch All In One Industrial PC,J6412 Capacitive Touch PC |
||

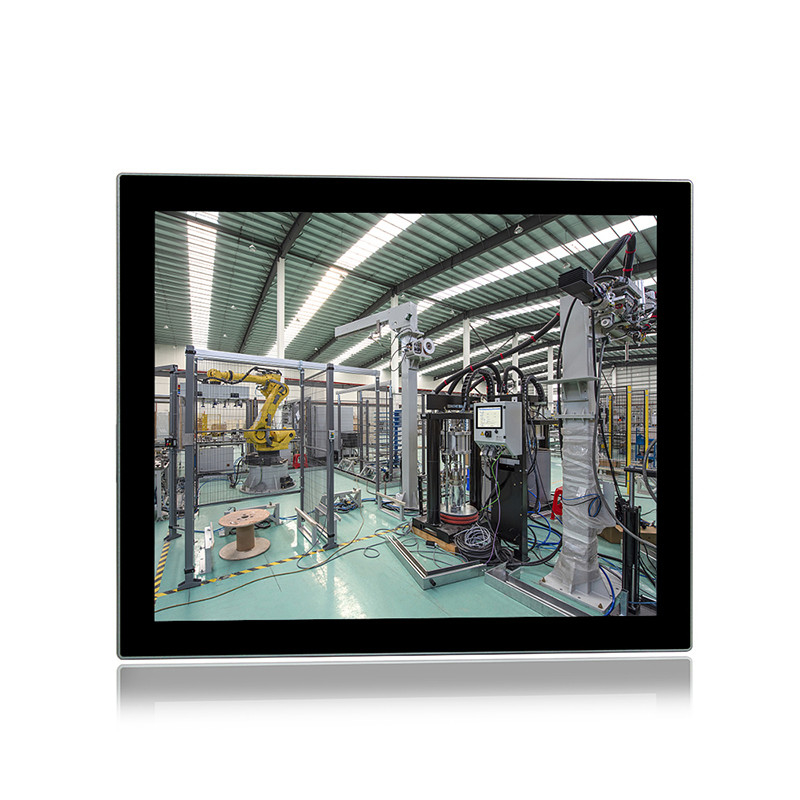

RS485 RS232 J6412 All In One Industrial PC Embedded Capacitive Touch
RS485/RS232 all in one industrial pc embedded capacitive touch J6412 17''
Product main features for 17'' all in one industrial pc:
1. QYT provides industrial computers in different sizes from 8-24'', ultra-thin design
2. The performance of the same size supports customization from J6412/J1900/i3/i5/i7
3. The QYT fan industrial panel adopts a one-time die-casting aluminum body, the design adopts modularization, wireless material design, dustproof and shockproof.
4. 17'' all in one industrial pc, adopt advanced embedded platform, high and low performance, high integration, rich I/O expansion functions
It adopts wide-voltage design, beautiful graphic design, and the front panel supports IP65 protection level, and supports remote power on and off.
| PPC-C017SAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |

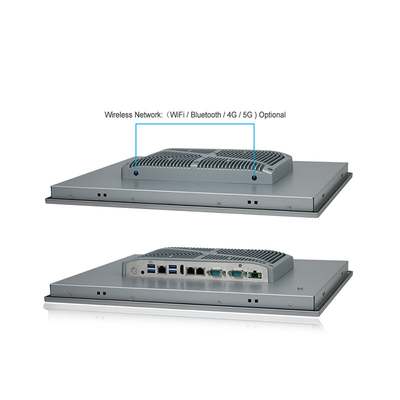

| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 17" ( 5:4 ) |
| Resolution | 1280 x 1024 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |

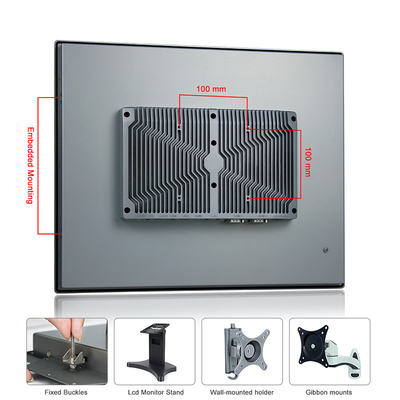

| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 395 x 327 x 60 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.3 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
17'' all in one industrial pc introduction
It is generally used in beverage production line control, automobile production line control, etc. It requires stability in harsh environments, such as dustproof, waterproof, antistatic, etc. Industrial tablet PCs do not require the current high performance, but only meet the requirements of the system, and must meet the reliability requirements and stability in the industrial environment. Otherwise, if the computer crashes when used in the production line, it may cause serious losses. Therefore, the 17' ' All in one industrial pc required standard values must comply with strict specifications and scalability.
With the performance of commercial machines getting better and better, many industrial sites have begun to adopt commercial machines with lower cost, and the market for commercial machines has also undergone tremendous changes. People are beginning to prefer more user-friendly touch panel computers. Therefore, in the industrial field, the industrial tablet computer with touch function will be the future trend. The 17'' all in one industrial pc is also a kind of industrial computer. Compared with the ordinary industrial computer, its advantages are as follows.
1. The front panel of 17'' all in one industrial pc is mostly made of aluminum-magnesium alloy die-casting, and the front panel reaches IP65 protection level. Strong, durable, and relatively light.
2. The industrial touch panel computer is small in size and easy to install and maintain.
3. Beautiful appearance and wide application.
