Product Details:
|
| Name: | 19 Inch Industrial all In One Touch Screen Panel Pc | CPU: | Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
|---|---|---|---|
| LCD Size: | 19" ( 5:4 ) | Memory: | DDR3L 1333MHz 4GB |
| Harddisk: | 1 X MSATA 128G SSD / (250G / 500G / 1TB SSD) Optional | Brightness (cd/m²): | 450 Or Higher |
| Touch Type: | 5 Wire Resistive Touch | OS: | Windows 7 / 10 / 11， Linux, Ubuntu |
| High Light: | All In One Touch Screen Panel PC FCC,Touch Screen Panel PC 1280 X 1024,Resistive Touch Screen Panel PC |
||

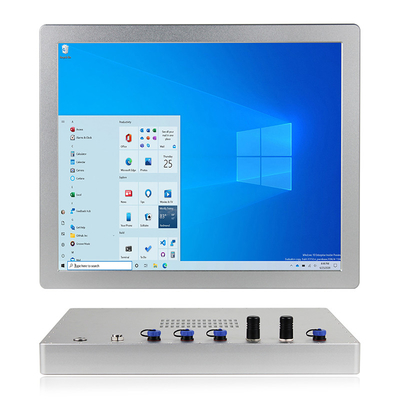

1280 x 1024 19 inch industrial all in one touch screen panel pc Resistive touch
Product performance description for 19 inch industrial all in one touch screen panel pc
1. Screen: 19 inch lcd
2. CPU: J1900/Core i3 i5 optional
3. Memory: 4GB/8GB optional
4. ROM: 128G/250G / 500G / 1TB SSD optional
5. Operating system: window/windows /windows 10 optional
6. Interface: H-DMI/RS232 serial port/USB/RJ45 Ethernet/audio/(POE power supply optional)
7. Touch screen: capacitive resistive touch screen is optional
8. Installation method: wall-mounted/in-wall/bracket
|
WPC-J019SAR |
|
|
System |
|
|
CPU |
Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
|
L2 Cache |
2.0MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel 82583V 1000 Mbps port |
|
Audio |
Realtek ACL662 Audio controller |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 10 / 11, Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x H-DMI ( Optional ) |
|
LAN |
2 x LAN ( Optional ) |
|
USB |
4 x USB ( Optional ) |
|
COM |
2 x RS232 ( Optional ) |
|
Wireless Network |
WiFi + Bluetooth ( Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
Display |
|
|
LCD Size |
19" ( 5:4 ) |
|
Resolution |
1280 x 1024 |
|
Brightness (cd/m²) |
450 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 Wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Input |
DC 12V~24V |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Mounting |
Stand / Wall / VESA / Yoke |
|
Dimension (W x H x D) |
430 x 355 x 42 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Weight (Net) |
6.5 kg |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP67 / IP69K |
|
EMC |
CE, FCC,ROHS |
