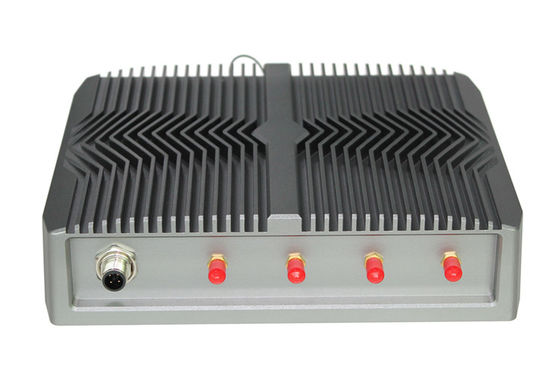

Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU

Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU
Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU

Large Image :  Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: IP66 IP69K CE ROHS FCC
Model Number: EFIC-6001PB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1pc/carton, weight: 4kg/pc,Packing Size:360 x 180 x 320 mm
Delivery Time: 3-7 working days upon receive the payment
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU

Description
CPU: Intel Core I7-8565U Quad Core 1.8GHz Waterproof Rate: IP66 / IP67 / IP69K
Memory: 4GB/8GB/16GB Storage: 32G SSD/64G SSD/128G SSD
VESA Mounting: 100 X 100 Mm Storage Temperature: -20~80°C(-22~176°F)
Product Dimension: 220 X 180 X 55 Mm Packing Size: 360 X 180 X 320 Mm
VGA: 1 X VGA / 1 X HD-MI ( Optional ) LAN: 1 X LAN ( Optional )
USB: 2 X USB2.0 / 2 X USB3.0 ( Optional ) Operation System: Windows 8 / 10, Linux, Unix, QNX
High Light:

I7-8565U Industrial Embedded Box PC

,

Aluminum Alloy Industrial Embedded Box PC

,

8565U pc box mini

Aluminum Alloy Industrial Mini PC Wide Voltage 9V-36V With i7-8565U


Features:
1. Aluminium alloy shell, whole pc IP66/ IP67/IP69K waterproof


2. Intel Core i7-8565U Quad core 1.8GHz, waterproof industrial embedded mini PC

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC12V~24V Input,(+9V~36V)wide voltage input optional


Application
Parking lot manage system
Charger station
Petroleum dispenser machine
Accesse control system
Marine environment
Industrial automatic machine


Specification

EFIC-6000QB
SystemCPUIntel Core i7-8565U Quad core 1.8GHz
L3 Cache8MB
ChipsetsIntel 8th Skylake-U SOC
MemoryDDR4L 2400MHz 4GB, Up to 32GB
Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
GraphicsIntel HD Graphics 620
NetworkIntel® i211A 1000 Mbps port
AudioRealtek ACL662 Audio controller
Operation SystemWindows 8 / 10, Linux, Unix, QNX
I / OVGA1 x VGA / 1 x HD-MI ( Optional )
LAN1 x LAN ( Optional )
USB2 x USB2.0 / 2 x USB3.0 ( Optional )
COM2 x RS232 ( Optional )
Wireless NetworkWiFi + Bluetooth ( Optional )
Other I/O Interface1 x Power Switch
InstitutionalMaterialAluminum Alloy Shell
ColorSilver / Black ( optional )
VESA MountingVESA: 100 x 100 mm
Waterproof RateIP66 / IP67 / IP69K
Product Dimension220 x 180 x 55 mm
Cut-out Size/
Packing Size360 x 180 x 320 mm
Gross Weight4.0 KG
Power and EnvironmentOperating Temperature-10~60°C
Storage Temperature-20~80°C(-22~176°F)
Relative Humidity5%~95%@40°C, non-condensing
Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power SupplyAC 100 - 240V~50/60Hz,1.5A
Working VoltageDC 9V~36V
Power Consumption≦20W

Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU 0Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU 1Aluminum Alloy Mini Industrial Embedded Box PC I7-8565U CPU 2

Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.

2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.

3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.

4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
