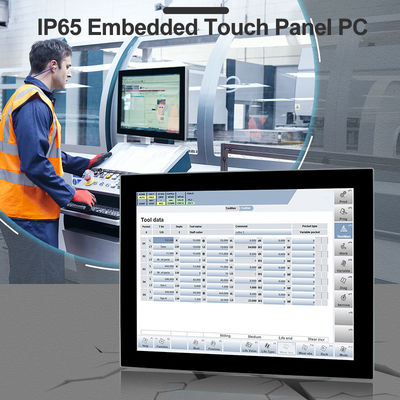

IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount

IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount
IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount

Large Image :  IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount

Product Details:
Place of Origin: China
Brand Name: QYT
Certification: IP65 FCC CE ROHS
Model Number: PPC-5015SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Foam + Carton
Delivery Time: 3-5 working days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Piece/Pieces per Month

IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount

Description
Size: 15" Resolution: 1024 X 768
CPU: Intel Core I3-8145U Dual Core 2.1GHz Memory: DDR3L 1333MHz 4GB, Up To 8GB
Storage: 1 X MSATA 64G SSD / ( 128G / 240G / 480G SSD ) Optional Touchscreen: Capacitive Touch
TPM: TPM2.0 Material: High-strength Al-alloy, Support IP65
Working Voltage: DC IN 9V~36V I/O: 2xLAN, 2xRS232/422/485, 1xH-DMI, 4xUSB
High Light:

RJ45 Embedded Touch Panel PC

,

I5-8365U Embedded Touch Panel PC

,

8th Gen embedded computer devices

15 Embedded Panel Pc IP65 2 RJ45 TPM2.0 8th Gen I5-8365U Wall Mount



Feature

1. 15" TFT LED, resolution 1024 x 768, Multi-Touch PCAP

2. Intel Core i5-8365U Dual Core 1.6GHz

3. Multi ports for option: 2xLAN, 2xRS232/422/485, 1xH-DMI, 4xUSB

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC IN 9V~36V

6.TPM 2.0


Application:

It is ideal for applications such as law enforcement, pharmaceutical, utiilities, government, security, defense, public sector, industrial, warehouse, logistics, hospitality, retail management and some other outdoor place.



Customization module can be made:

Panel size, IP grade (IP65/67/68/69), Built- in camera, 3G/4G Module, RFID reader, Fingerprint,

Dimension, Built-in Battery, Barcode scanner, Mounting type, speaker and material ....etc.



Specification

PPC-5015SAC
System CPU Intel Core i5-8365U Dual Core 1.6GHz
L3 Cache 6MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 15" LED
Resolution 1024 x 768
Aspect Ratio 4:3
Display Brightness 350 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 361 x 285 x 60 mm
Cut-out Size 347 x 271 mm
Packing Size 460 x 180 x 400 mm
Gross Weight 7 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦30W



IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount 0IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount 1IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount 2IP65 RJ45 TPM2.0 Embedded Touch Panel PC 8th Gen I5-8365U Wall Mount 3



Product Advantage

1. Wide range: -20°C to 70°C working temperature range.



2. Industrial LCD panel is wide viewing angle with high nits and true color.



3. Motherboard is high performance and 7x24 continuous operation available.



4. Heat sink in back case great for heat dissipation and beautiful appearance.



5. Working voltage is wide range 12-24V, suitable for various industrial applications.



6. Symmetric design can be utillized in portrait mode with style.



FAQ

1. Q: Are you a manufacturer or trading company?

A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?

A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?

A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?

A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?

A: 3 business days for samples order, 15 business days for mass production.

6. Q: What is the MOQ?

A: Sample testing is acceptable, the price is negotiable for bulk order.
