Product Details:
|
| Size: | 15" | Resolution: | 1024 X 768 |
|---|---|---|---|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
| Storage: | 1 X MSATA 64G SSD / ( 128G / 240G / 480G SSD ) Optional | Touchscreen: | Multi-Touch PCAP |
| TPM: | TPM2.0 | Display Brightness: | 350 Cd/m2 |
| Material: | High-strength Al-alloy, Support IP65 | I/O: | 2xLAN, 2xRS232/422/485, 1xH-DMI, 4xUSB |
| High Light: | TPM2.0 Rugged Embedded Computer,CE Rugged Embedded Computer |
||
Feature
Onboard Intel Celeron J1900/7th/8th Gen.Core i3/i5/i7 CPU
Onboard DDR3 4GB Memory / Optional SODIMM SKU
LCD+HDM-I Output, Support Dual view/Simultaneous display
Fanless Operation
IP65 Front Bezel
Wide DC Support 9 ~ 36V
GPIO Port
All Aluminum Housing with Heatsink
Specification
| PPC-3015SAC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" LED |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 361 x 285 x 60 mm | |
| Cut-out Size | 347 x 271 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.

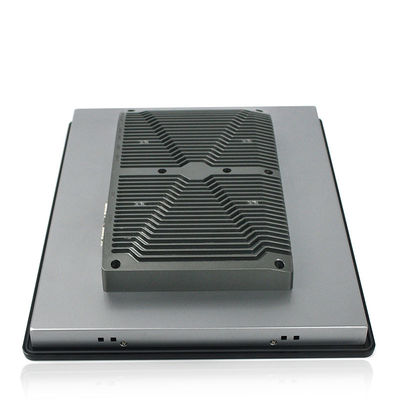

4. Heat sink in back case great for heat dissipation and beautiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
