Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 10.1" LED |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Core I7-8565U Dual Core 1.8GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | Harddisk: | 1 X MSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
| I/O Port: | 2xLAN, 2xRS232/422/485, 1xH-DMI, 4xUSB | Touchscreen: | Multi-Touch PCAP |
| TPM: | TPM2.0 | VESA: | 100 X 100 Mm |
| Item: | Windows Box Pc | ||
| High Light: | I7-8565U mini desktop computer,8th gen mini desktop computer,TVS mini pc fanless i7 |
||
Features:
1. 10.1" TFT
2. Intel Core i7-8565U Dual Core 1.8GHz
3. DDR4L 2400MHz 4GB, Up to 32GB
4. 2xLAN, 2xRS232/422/485, 8KV Static Electricity & 600W TVS Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse connection protection
7. -20°C ~ 70°C extended operating temperature
8. IP65 Compliant Front PanelLED with PCAP Touch
Specification
| PPC-7010WAC | ||
| System | CPU | Intel Core i7-8565U Dual Core 1.8GHz |
| L3 Cache | 8MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |

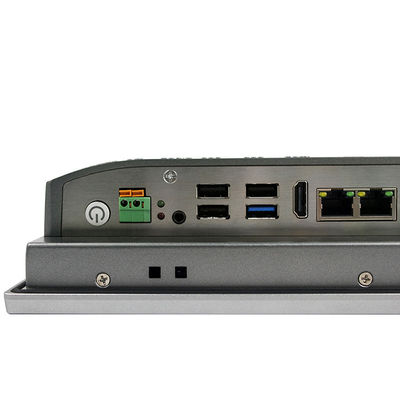

| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 900:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 275 x 194 x 58 mm | |
| Cut-out Size | 263 x 182 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Applications
Self service kiosk
Packaging inspection equipment
Ticket machine
Self-recovery machine
Traffic Control System
voting machine
vending machine
Self-service medical ticketing machine
factory automation
machine vision
military and defense
motion control
digital surveillance
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
