Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 12.1" Led |
---|---|---|---|
Resolution: | 1280 X 800 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | I3 industrial touch screen pc,Windows industrial touch screen pc,Intel 8th Gen fanless medical computer |
Feature
The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.

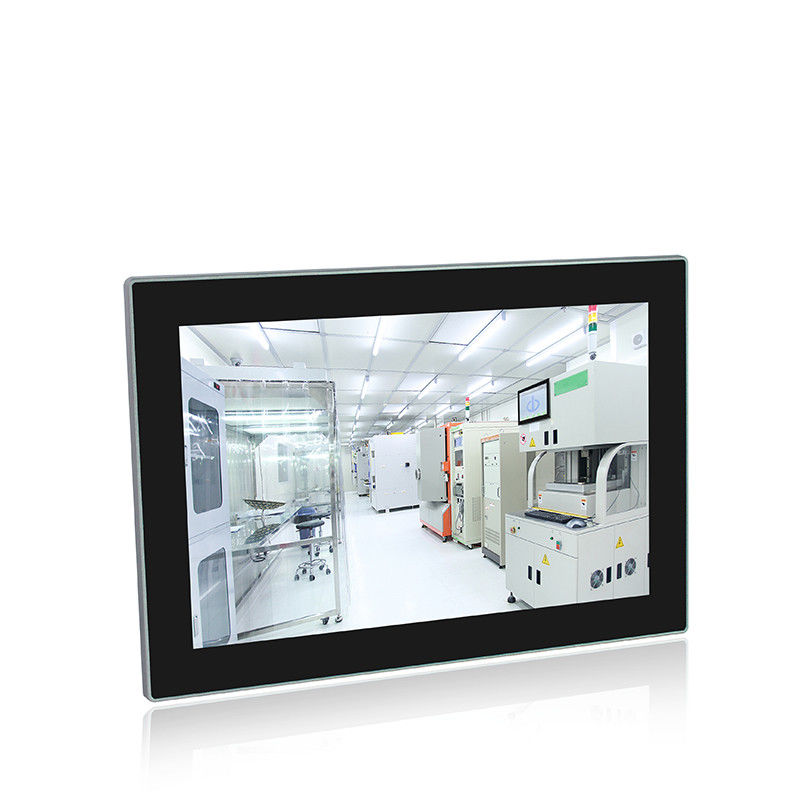

1. 12.1" TFT LED with PCAP Touch
2. Intel Core i3-8145U Dual Core 2.1GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 8GB
4. 2xLAN, 2xRS232/422/485, 8KV Static Electricity & 600W TVS Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse connection protection
7. -20°C ~ 70°C extended operating temperature
8. IP65 Compliant Front Panel
PPC-3012WAC | ||
System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
L3 Cache | 4MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 12.1" Led |
Resolution | 1280 x 800 | |
Aspect Ratio | 16:10 | |
Display Brightness | 450 cd/m2 | |
Contrast Ratio | 700:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 314 x 216 x 60 mm | |
Cut-out Size | 300 x 203 mm | |
Packing Size | 450 x 170 x 350 mm | |
Gross Weight | 5 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦35W |
Advantages:
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.

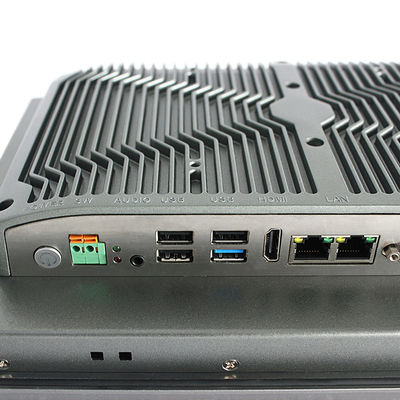

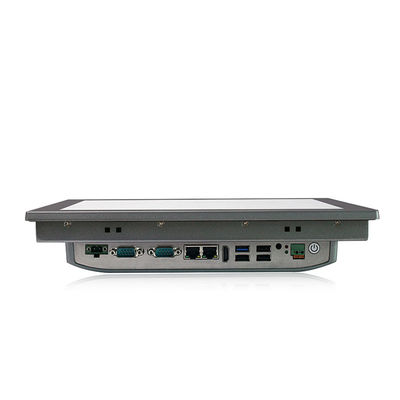

I/O Interface:
The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
Wide Working Voltage:
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection
Extended Operating Temperature:
The computer supports extended temperature(-20°C ~ 70°C) to allow application in difficult and harsh environment.
