Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 15.6" FHD Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | Multi Touch medical panel computer,USB 3.0 medical panel computer |
||
Feature
Our industrial multi-touch panel PCs are reliable, durable, and provide industrial OEMs and machinery manufacturers with vast selection of industrial embedded computing technologies and solutions, widely used for HMI automation, information and communication applications.
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
1. 15.6" TFT LED, resolution 1920*1080
2. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference.
| PPC-5156WAC | ||
| System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15.6" FHD Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 600 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 400 x 250 x 60 mm | |
| Cut-out Size | 386 x 236 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Advantages:
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.

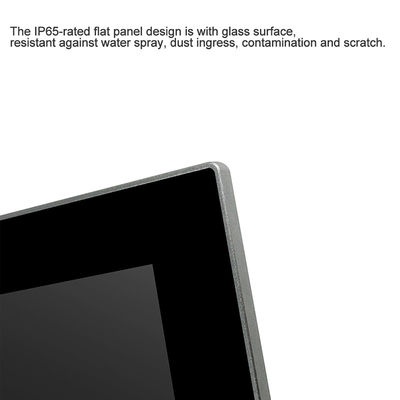

IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.

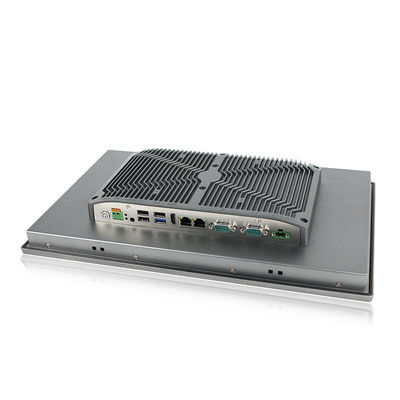

Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
I/O Interface:
The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
Wide Working Voltage:
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection

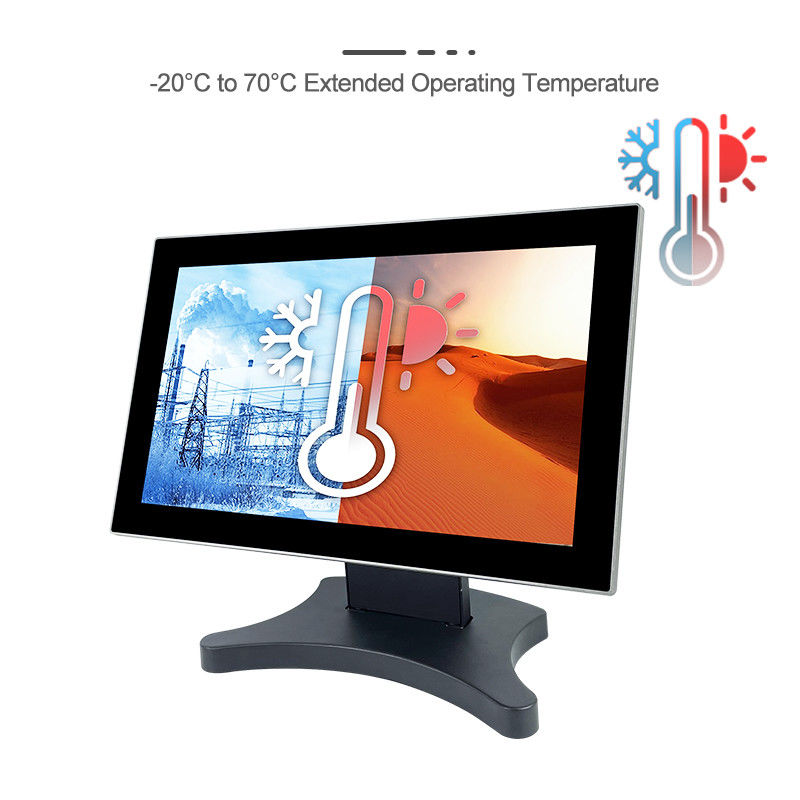

Extended Operating Temperature:
The computer supports extended temperature(-20°C ~ 70°C) to allow application in difficult and harsh environment.
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
