Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | 21.5" dual lan pc,Weatherproof dual lan pc,dual lan fanless industrial panel pc |
Feature

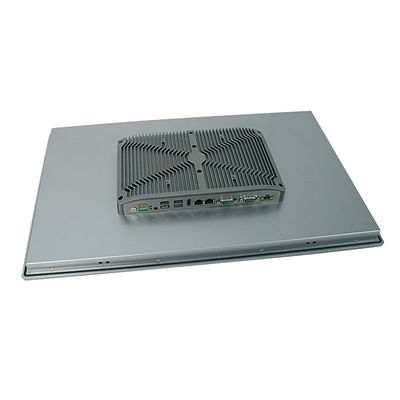

This industrial panel pc is fanless, waterproof, IP65 rated, touch panel systems in compact chassis with multifunctional I/O & based on the latest Intel Processors & with low power consumption.
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection

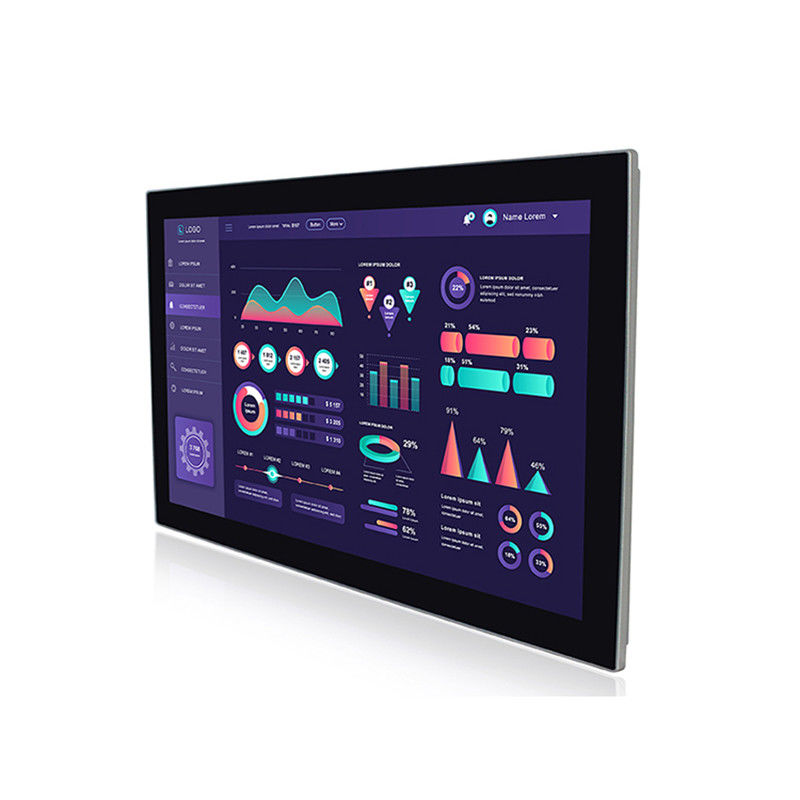

1. 21.5" TFT LED, resolution 1920*1080, Multi-Touch PCAP
PPC-5215WAC | ||
System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
L3 Cache | 6MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |

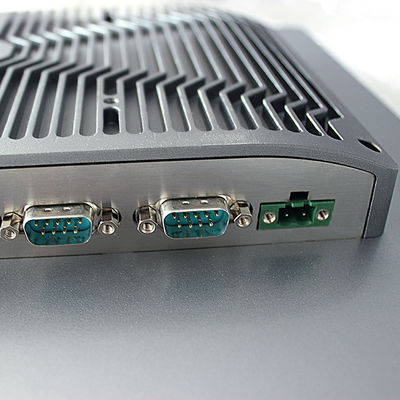

COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 21.5" FHD LED |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 250 cd/m2 | |
Contrast Ratio | 3000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 538 x 330 x 60 mm | |
Cut-out Size | 520 x 312 mm | |
Packing Size | 630 x 190 x 480 mm | |
Gross Weight | 12 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦45W |
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
Product Advantage
1. Wide range: -20°C to 70°C working temperature range.
2. Industrial LCD panel is wide viewing angle with high nits and true color.
3. Motherboard is high performance and 7x24 continuous operation available.
4. Heat sink in back case great for heat dissipation and beautiful appearance.
5. Working voltage is wide range 12-24V, suitable for various industrial applications.
6. Symmetric design can be utillized in portrait mode with style.
