Product Details:
|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | VGA/HD-MI/LAN/USB/COM |
| Power Input: | DC 9V~36V | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦20W | Working Time: | 7*24h |
| High Light: | Intel Core Rugged Embedded Computer,36v Rugged Embedded Computer,I3 industrial personal computer |
||
Feature
Ruggedized For Harsh Conditions At The Edge
Industrial computers play a significant role for industrial automation workloads by feeding data pathways in compute, storage, and connectivity at the rugged edge. As the demand for low-latency processing sets the stage for greater automation in harsh conditions, specialized computer designs push these industrial computers to new boundaries and deliver better results.
1. Intel Core i3-8145U Dual Core 2.1GHz
2. 1x DDR4L 2400MHz 4GB. Max up to 32GB
3. 2x GbE supporting Wake-on-LAN and PXE
4. 4*COM (RS232/R485 optional), 1*WiFi / Bluetooth/4G optional

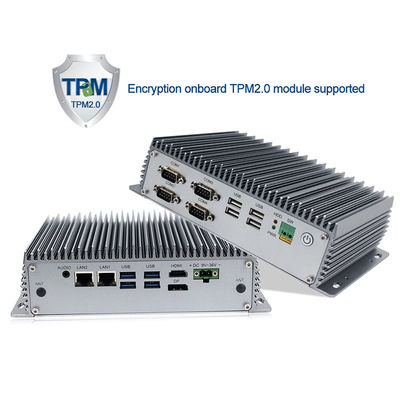

5. Encryption onboard TPM2.0 module supported
6. DC9V～36V wide voltage
7. -20°C ~70°C extended operating temperature
| EFIC-1000OB | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L2 Cache | 4MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x DP / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 4 x USB2.0 / 4 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
Advantages
1. Sealed construction with fanless design, noiseless, low-power consumption design.
2. Aluminum alloy brushed metal craft, compact, low weight design, excellent heat dissipation.
3. Suitable for harsh operating environment, dustproof,anti-corrosion, anti-shock .
4. High performance motherboard, 7x24 continuous operation
5. Wide operating temperature support
6. With high electromagnetic compatibility and anti-interference capacity
