RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor

RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor
RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor

Large Image :  RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: DCP-5156WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor

Description
IP Rating: IP65 Led Panel: 15.6" FHD Led
Resolution: 1920 X 1080 CPU: Intel Core I5-8265U Dual Core 1.6GHz
Memory: DDR4L 2400MHz 4GB, Up To 32GB HDD: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive
TPM: TPM2.0 Working Voltage: DC IN 9V~36V
High Light:

RAFI FS22 HMI Panel PC

,

IP65 HMI Panel PC

,

HMI ip65 touch screen monitor

TPM2.0 IP65 Waterproof 17 Inch Control Panel Pc All In One Pc RAFI FS22 Button

Feature
HMI Touch Panel for use in harsh industrial environments

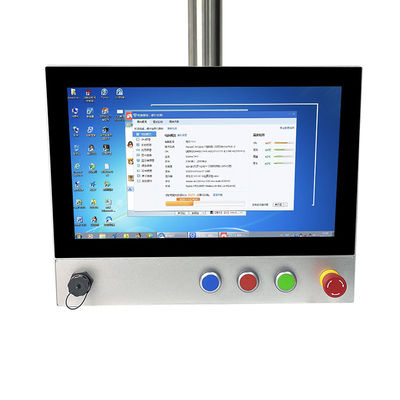

The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.


1. 15.6" TFT LED, resolution 1920 x 1080, capacitive touch


2. Intel Core i5-8265U Dual Core 1.6GHz

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Windows 10 / Linux, Ubuntu, Debian

5. DC9V~36V wide voltage input

DCP-5156WAC
System CPU Intel Core i5-8265U Dual Core 1.6GHz
L3 Cache 6MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI / 1 x DP
LAN 2 x LAN
USB 4 x USB 3.0
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )

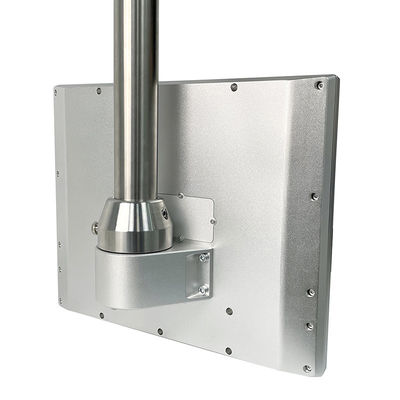

Stainless steel 48 series cantilever 1 x 4800
RAFI FS22+ Button 1 x Emergency Stop / STOP / START / RESET / USB
LCD Panel Panel Size 15.6" FHD Led
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 600 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy
Color Silver

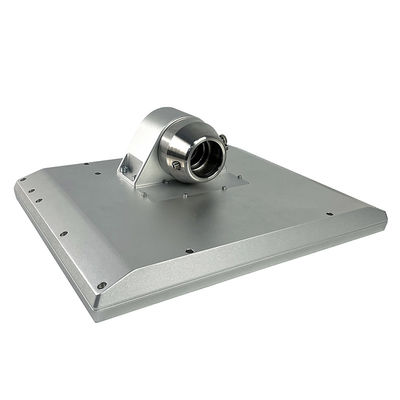

VESA Mounting Stainless steel 48 cantilever
Waterproof Rate IP65 / IP66
Product Dimension 400 x 315 x 130 mm
Cut-out Size
Packing Size 500 x 180 x 450 mm
Gross Weight 16 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦35W


RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor 0RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor 1RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor 2

RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor 3

RAFI FS22 Button All In One HMI Panel PC TPM2.0 IP65 touch screen monitor 4


Applications

Industrial automation

human Machine Interface

Marine control system

welding industry

supervisory control

numerical control device


Our Advantage

1. Experience

QYT has more than 10 years rich experience in Industrial Computer/monitor filed.



2. Wide products line

QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.



3. Customization functions

Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.



4.Widely useage environment

QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
