Product Details:
|
| CPU: | Intel Core I7-8565U Quad Core 1.8GHz | Memory: | 4GB/8GB/16GB |
|---|---|---|---|
| Storage: | 32G SSD/64G SSD/128G SSD | System: | Windows8 / 10, Linux, Unix, QNX |
| Material: | Aluminum Alloy Shell | External Power Supply: | AC 100 - 240V~50/60Hz,1.5A |
| TPM: | TPM2.0 | I/O: | 1xHDMI,2xLAN,4xUSB3.0,2xRS232/422/485 |
| Working Voltage: | DC IN 9V~36V | Power Consumption: | ≦25W |
| High Light: | RS232 Industrial Embedded Box PC,TPM2.0 Industrial Embedded Box PC,Cnc Plasma Machine Embedded Industrial Pc |
||

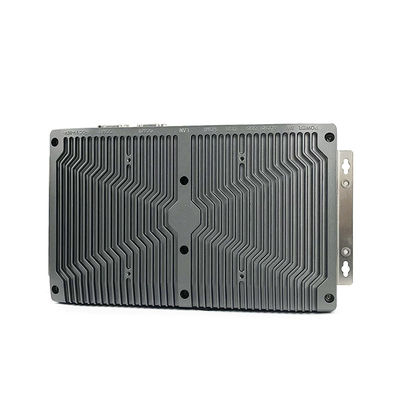

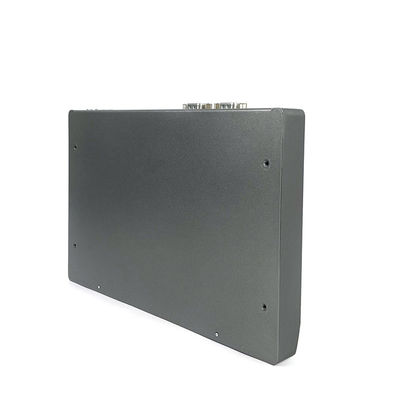

Intel Core I7 8565U Embedded Box Pc For Cnc Plasma Machine mSATA 64G SSD
FEATURES
1. The aluminum alloy structure, hard anodic oxidation treatment of sandblasting, resistance to scratch
2. CPU: Intel Core i7-8565U Quad Core 1.8GHz, Fanless configuration
3. Two gigabit front-end ports, two serial RS232/422/485, 8 kv static and 600 w TVS surge protection
4. The onboard TPM2.0 module provides maximum security hardware
5. Wide voltage DC 9 v ~ 36 v, over-current, over-voltage and reverse connect protection
Specification
| EFIC-50007A | ||
| System | CPU | Intel Core i7-8565U Quad Core 1.8GHz |
| L2 Cache | 8MB | |
| Chipsets | Intel Whiskey Lake SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |

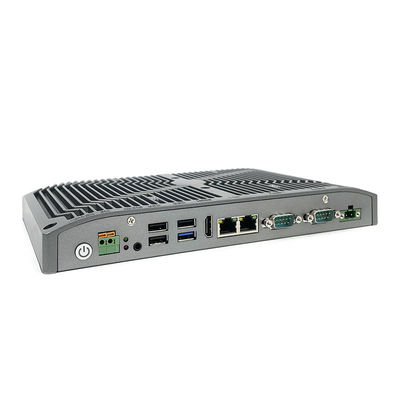

| I / O | Display | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Gray / Silver / Black ( optional ) | |
| Fixed size | 272 x 90 mm / 272 x 60 mm | |
| Product Dimension | 258 x 158 x 33 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦25W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
Application
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
