Product Details:
|
IP Rating: | Front IP65 | Size: | 15.6" FHD Led |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I7-8565U Quad Core 1.8GHz |
RAM: | 4GB, Up To 32GB | Harddisk: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Interface: | 2xLAN, 2xRS232/422/485, 1xH-DMI, 4xUSB | Touchscreen: | Resistive Touch / Capacitive |
High Light: | Fanless Embedded HMI Panel PC,TPM2.0 HMI Panel PC,1500nits Stainless Steel Panel Pc |
Feature
The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
1. 15.6" TFT LED, resolution 1920 x 1080
2. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
PPC-7156WAR | ||
System | CPU | Intel Core i7-8565U Quad Core 1.8GHz |
L3 Cache | 8MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |

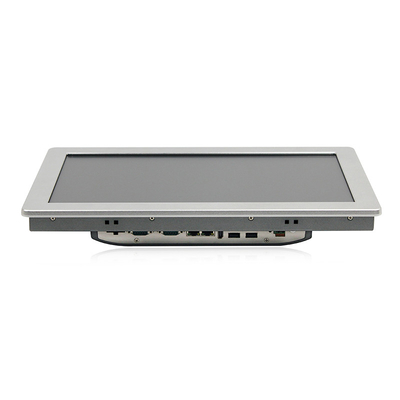

I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 15.6" FHD Led |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 600 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | 5 Wire Resistive touch |
Transmittance | >80% | |
Response Time | <10ms | |
Surface Hardness | ≥3H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3500W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Silver / Black | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |

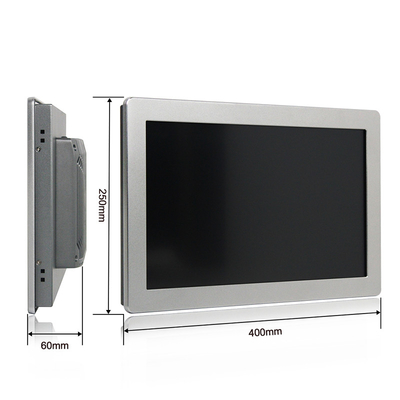

Product Dimension | 400 x 250 x 60 mm | |
Cut-out Size | 386 x 236 mm | |
Packing Size | 460 x 180 x 400 mm | |
Gross Weight | 7 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦55W |
Advantages:
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.

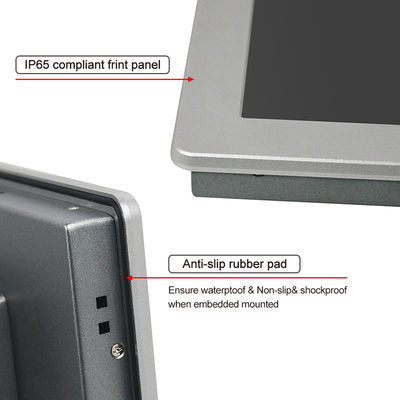

IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.

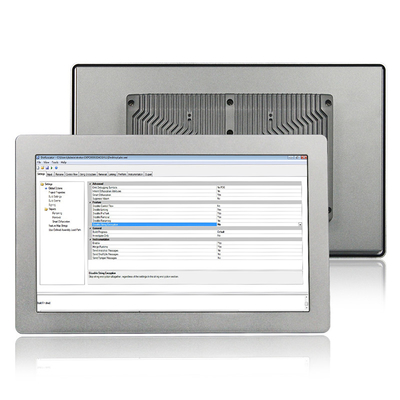

Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
I/O Interface:
The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
Wide Working Voltage:
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection
Extended Operating Temperature:
The computer supports extended temperature(-20°C ~ 70°C) to allow application in difficult and harsh environment.
Touch:
Intuitive multi-touch interface to easily control and manage production processes.
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
