Product Details:
|
CPU: | Intel Core I5-8265U Quad Core 1.6GHz | RAM: | 4GB, Up To 32GB |
---|---|---|---|
HDD: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) |
Power Input: | DC 9V~36V | Operating System: | Windows 10 / Linux, Ubuntu, Debian |
Power Consumption: | ≦15W | Working Time: | 7*24h |
High Light: | 15W Industrial Fanless Mini PC,2400MHz Industrial Fanless Mini PC,Aluminium Shell Embedded Panel Pc |
Feature

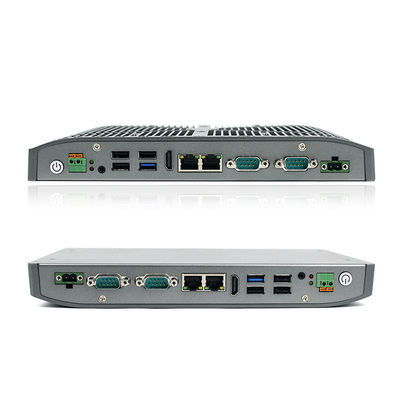

Fanless mini PCs are industrial grade computing solutions designed and built to withstand deployment in challenging environments to manage workloads for processing, storage, and connectivity. Fanless mini computers are great for deployment in challenging environments because they are passively cooled, utilize solid-state drives, and can be configured using wide temperature range components. All of these key features result in a ruggedized, fanless mini computing solution that has no moving parts and is resistant to dust, dirt, shocks, vibrations, and extreme temperatures.
1. Aluminium alloy shell
EFIC-50005A | ||
System | CPU | Intel Core i5-8265U Quad Core 1.6GHz |
L2 Cache | 6MB | |
Chipsets | Intel Whiskey Lake SOC | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | Display | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi + Bluetooth ( Optional ) | |
Other I/O Interface | 1 x Power Switch | |
Institutional | Material | Aluminum Alloy Shell |
Color | Gray / Silver / Black ( optional ) | |
Fixed size | 272 x 90 mm / 272 x 60 mm | |
Product Dimension | 258 x 158 x 33 mm | |
Packing Size | 360 x 180 x 320 mm | |
Gross Weight | 4.0 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦25W |
Advantages
1. Sealed construction with fanless design, noiseless, low-power consumption design.
2. Aluminum alloy brushed metal craft, compact, low weight design, excellent heat dissipation.
3. Suitable for harsh operating environment, dustproof,anti-corrosion, anti-shock .
4. High performance motherboard, 7x24 continuous operation
5. Wide operating temperature support
6. With high electromagnetic compatibility and anti-interference capacity
Applications
Provide full control and communication functions:
