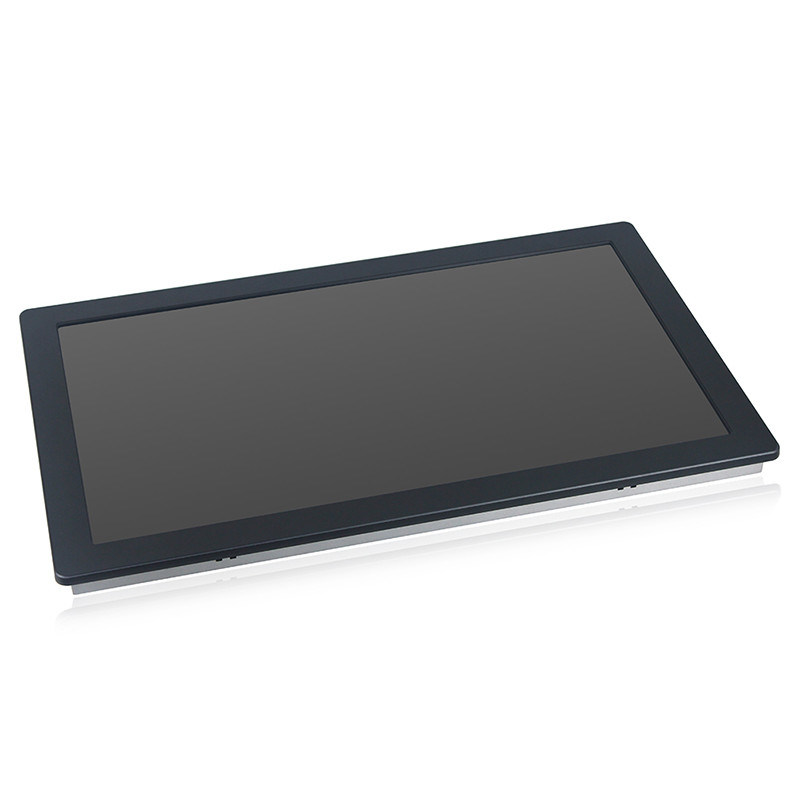

Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | 4GB, Up To 8GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Resistive / Capacitive Touch |
| High Light: | HMI Panel PC 64gb,VESA Mounting HMI Panel PC,Touchscreen Industrial Panel Pc |
||
Manufacturing areas are often times very harsh environments, and one of the most invasive sources of contamination in these settings is dust and other airborne particulates such as carbon powder, metallic debris, and oils. When this contamination enters a computer, it coats components and reduces performance, shortens the product life, and can cause outright failure. QYT fanless panel PCs include unique thermal designs that allow for fanless operation without ventilation holes. Fanless panel PCs are protected from dust contamination, as they do not draw dust into their enclosures.
About US:
QYT is a global leader in industrial automation and HMI Panel PCs. We provide Panel PCs for embedded automation computers, automation controllers, remote i/o modules, and custom data acquisition solutions.
QYT's Panel PCs are available ready to run with the Operating System installed on a flash disk or hard drive. Apply power and watch either the Windows or Linux User Interface appear on the vivid color LCD. Interact with the PPC using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
| PPC-J215WAR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | Display | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 21.5" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% | |
| Response Time | <10ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3500W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65/IP66 | |
| Product Dimension | 538 x 330 x 62 mm | |
| Cut-out Size | 520 x 312 mm | |
| Packing Size | 630 x 190 x 480 mm | |
| Gross Weight | 12 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦40W | |
What is an industrial Panel PC?
An Industrial panel PC is an all-in-one computer manufactured with industrial grade components and energy-efficient fanless cooling systems, making it extremely rugged, similar to an industrial mini PC. Designed to operate reliably in harsh industrial and outdoor environments, industrial touch screen PCs withstand vibration, shock, exposure to moisture, dust, extreme temperatures and temperature fluctuations. Enclosed or open frame, they are highly customizable, durable and reliable. A QYT Industrial panel PC has a less than 2% fail rate and a 3 - 5 year product life cycle.
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
