Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 17" LED |
|---|---|---|---|
| Resolution: | 1280 X 1024 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | IP65 Grade Touch Panel PC,Embedded Industrial Panel Computer With HDMI |
||
Feature
INDUSTRIAL TOUCH PANEL PCS
Fanless Industrial Touch Screen PCs
Unlike traditional enterprise all-in-one PCs, industrial panel PCs are engineered with industrial grade components to withstand the harshest environments. VESA mountable and touchscreen capable, our panel PCs are ready to be embedded and integrated into virtually any industrial environment, even outdoors. Fanless cooling helps protect internal components from dust and debris that typically damages computers in industrial areas. QYT's panel PCs are also customizable with multiple legacy ports and expansion slots to ensure their versatility and ability to be adapted to any job.
About US
QYT touchscreen computers are designed to operate flawlessly in a range of environments and applications.
Screen – Panel PCs with a choice of 4:3 or 16:9 touchscreen displays in sizes from 7″ to 24″
Performance – Panel PCs with options for both power efficient and high performance Intel processors
Expansion – Our touchscreen PCs support additional I/O
Availability – All QYT PPCs are available for at least 5 years from launch
Operating System – With support for Windows, Android and Linux, there is a QYT Panel PC for every need
Environment – QYT offer Panel PCs designed for industrial and outdoor applications
| PPC-5017SAC | ||
| System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |

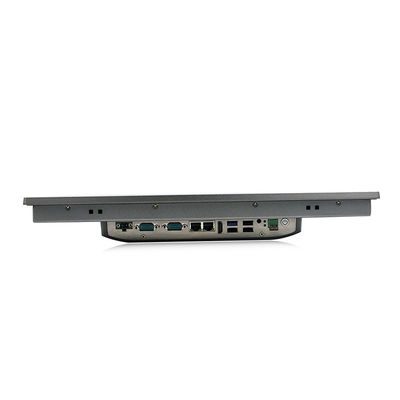

| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 17" LED |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 361 x 285 x 60 mm | |
| Cut-out Size | 347 x 271 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Feature
1. Cordless motherboard design, high-end industrial panel PC
2. Fully enclosed design, the whole PC is dust-proof.

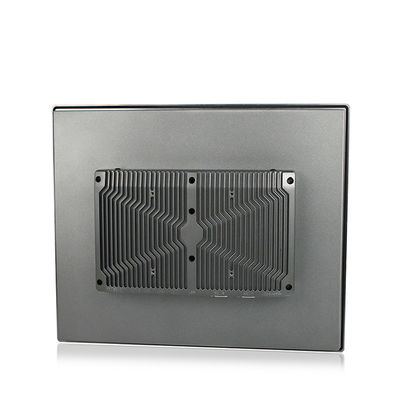

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with tempered glass for vandal-proof.
6. 9V-36V wide voltage.
7. High performance motherboard, 7x24 continuous operation.
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
