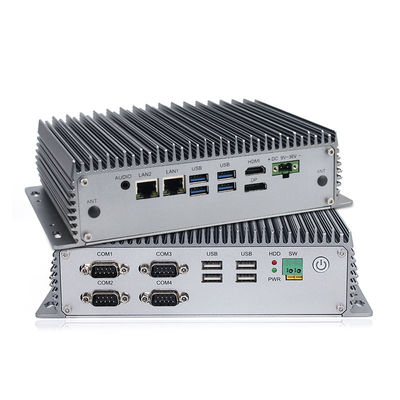

Product Details:
|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | VGA/HD-MI/LAN/USB/COM |
| Power Input: | DC 9V~36V | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦20W | Working Time: | 7*24h |
| High Light: | Fanless Mini Embedded Box PC,Edge Computing Fanless Mini PC |
||
About US:
QYT is a global leader in industrial automation and HMI Panel PCs. We provide Panel PCs for embedded automation computers, automation controllers, remote i/o modules, and custom data acquisition solutions.
QYT's Panel PCs are available ready to run with the Operating System installed on a flash disk or hard drive. Apply power and watch either the Windows or Linux User Interface appear on the vivid color LCD. Interact with the PPC using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
| EFIC-1000OB | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L2 Cache | 4MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x DP / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 4 x USB2.0 / 4 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
Applications
ATM
Pos machine
vending machine
Digital signage
Industrial automation
kiosk
machine control
telecomommunication
laser cutting machine
CNC machine
