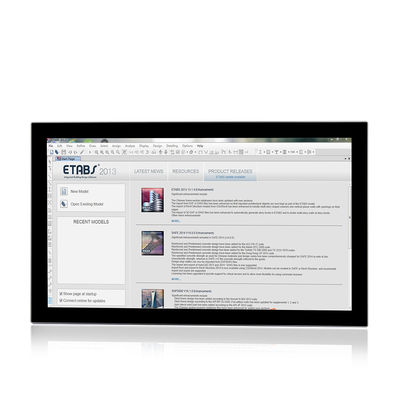

8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof

8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof
8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof 8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof 8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof

Large Image :  8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-3024WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof

Description
IP Rating: Front IP65 Led Panel: 23.8" FHD LED
Resolution: 1920 X 1080 CPU: Intel Core I3-8145U Dual Core 2.1GHz
Memory: DDR4L 2400MHz 4GB, Up To 32GB Harddisk: 1 X MSATA 64G SSD / (120G / 250G / 500G SSD) Optional
I/O Interface: 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) Touchscreen: Capacitive Touch
Working Voltage: DC IN 9V~36V Operation System: Windows 10 / Linux, Ubuntu, Debian
High Light:

IP65 industrial touch screen panel pc

,

Waterproof industrial touch screen panel pc

,

Capacitive touch Waterproof Touch Screen PC

8th i3 i5 i7 industrial touch screen panel pc with front IP65 Waterproof

About Product

Our industrial computers are used in a variety of industries and fields. Rack PC, Desktop Industrial PC, Wall Mounted Industrial PC, Embedded PC or Embedded Box PC with absolute reliability. Our products are also certified by CE, FCC, RoHS, IP65, IP69k.

The components used meet special requirements and are highly protected against dust, temperature fluctuations and moisture. From configuration and equipment to mechanical adjustments, to design, branding and software. Every Industrial PC and every Embedded PC undergoes a documented burn-in stress test before delivery to provide the highest possible reliability. With more than ten years of experience, we have been constantly striving for innovation and quality.



Product Highlights

1. High-quality aluminum housing



2. Display sizes from 8″ to 24″



3. Powerful 8th generation Intel Core i3, i5 or i7 CPU



4. Front IP66 protection



5. TPM 2.0, DC IN 9V~36V



6. Optional W-LAN, 4G/5G/WIFI/Bluetooth, extended temperature range, high brightness



7. Individual interfaces and adjustments possible



PPC-3024WAC
System CPU Intel Core i3-8145U Dual Core 2.1GHz
L3 Cache 4MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O Display 1 x H-DMI
LAN 2 x LAN
USB 3 x USB2.0 / 1 x USB3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 23.8" FHD LED
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 350 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 30000 Hr (min.)
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65 / IP66
Product Dimension 585 x 354.5 x 63 mm
Cut-out Size 568 x 337 mm
Packing Size 730 x 200 x 530 mm
Gross Weight 16 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V





8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof 0

8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof 1

8th I3 I5 I7 Industrial Touch Screen Panel PC Capacitive Touch Front IP65 Waterproof 2





ODM /ODM service

  • Appearance Customization

Appearance color

Product size

Mold custom

Installation method

  • Function Customization

Brightness Resolution

Anti dazzle Explosion proof screen

Touch screen

Wide Voltage I/O Ports

Protective grade Wide temperature

  • Module Customization





Packaging Details:

We usually packed with strong EPE, Foam + Carton(Each two sets packed into one carton). Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.
